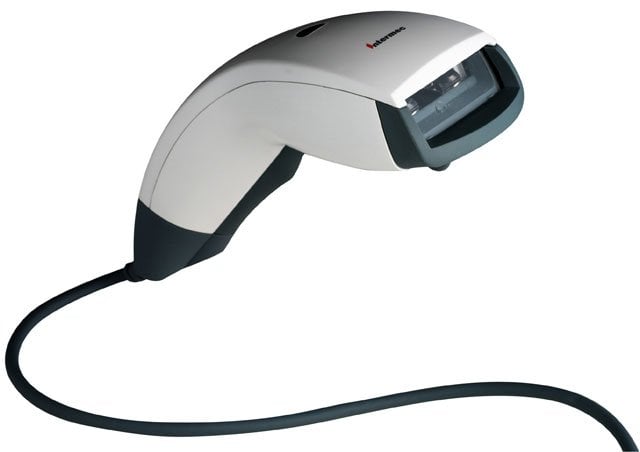

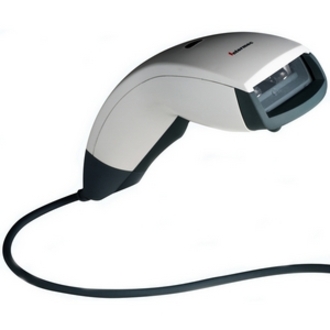

Intermec 0-360057-01 Barcode Scanner

The Intermec 0-360057-01 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Intermec ScanPlus 1800 - kit. Kit includes short range CCD scanner, PS/2 Y cable, trigger & desktop stand.

At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
Wired connectivity makes this scanner ideal for retail and desktop applications
Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
Scan barcodes with a staggering speed of 400 scan/s

Need a different version? See all Intermec ScanPlus 1800 Barcode Scanners

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

Intermec ScanPlus 1800 Barcode Scanner Model Overview

Compatible for contact and non-contact applications, the ScanPlus 1800 provides the flexibility your operation needs by providing a choice of different scan engines. A universal host interface system allows the ScanPlus 1800 to be connected to many hundreds of PC's, cash registers, or other terminals simply by changing the cable and software set-up. Firmware upgrades or special applications are easily implemented using flash memory easily extending your solutions potential. All units ship with product documentation.

Intermec 0-360057-01 Barcode Scanner Overview

The Intermec ScanPlus S1800 SR Bar Code Reader is a cost effective, yet full-featured supply chain solution for retail, office, health-care and light industrial applications. The S1800 SR is a fast and accurate answer for your contact and non-contact scanning needs.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

UPC-E
UPC-A
EAN
Code 39
Industrial 2 of 5
Standard 2 of 5
Code 128
UCC/EAN 128
Codabar
Code 93
Matrix
MSI
Plessey

Image Sensor Type:

CCD

Scan Rate:

400 scan/s

Maximum Scan Resolution:

4 mil

Depth of Field:

0cm - 2cm@4mil
0cm - 4cm@10mil
0cm - 5.5cm@100% UPC/EAN
0cm - 6cm@15mil
0cm - 7cm@20mil
0cm - 10cm@27mil

Stand Included:

Yes

Interfaces/Ports

Host Interface:

Multi-interface

Power Description

Input Voltage:

5 V DC

Physical Characteristics

Weight (Approximate):

5.10 oz

Miscellaneous

Package Contents:

ScanPlus S1800 SR Bar Code Reader
Keyboard Wedge Cable
Trigger
Desk Stand
Holder
Operator Guide
Getting Started Guide
CD with EasySet

Additional Information:

Supported Interfaces:

Wand Emulation
Serial
IBM 46XX
OCIA
Keyboard Wedge

USB Cable separate

Certifications & Standards:

FCC Part 15
72/23/EEC
CE Directives 89/336/EEC
Low Voltage Directive EN 60742 (1995)

Warranty

Limited Warranty:

5 Year

Item Numbers

UNSPSC: 43211701

Reviews

Q&A

Accessories

Get help from a Barcoding Expert!

The Intermec 0-360057-01 Barcode Scanner is also known as INT-1800C06
