Ingenico PRH30311560A Payment Terminal
Full specifications (PDF)

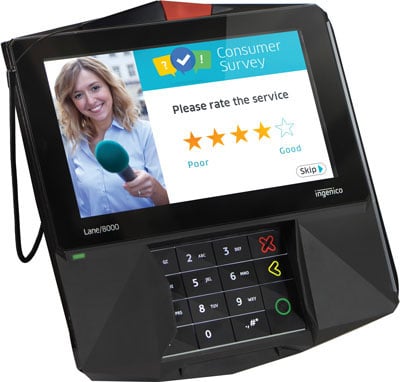

Ingenico Lane 8000 Payment Terminal Model Overview
Frequently Asked Questions
What payment methods does the Ingenico Lane 8000 support?
The Ingenico Lane 8000 supports all major payment options including EMV chip & PIN, chip & sign, magstripe, signature capture, and NFC contactless payments. The terminal features dual-head magstripe readers, smart card contact and contactless readers, all compliant with EMV Level 1 standards with 500,000 read lifespan.
Is the Ingenico Lane 8000 PCI compliant?
Yes, the Ingenico Lane 8000 is PCI PTS 5.x certified, meeting the latest hardware and software security requirements. The terminal uses the Telium TETRA operating system with advanced cryptographic schemes to ensure secure payment processing in retail environments.
What display and touchscreen capabilities does this payment terminal have?
The Lane 8000 features a 7-inch color WVGA touchscreen display (800x480 resolution) with a backlit TN display and capacitive touch technology. The touchscreen supports both finger and stylus input with a tethered passive stylus included, rated for 1 million signature captures.
What connectivity options are available on the Ingenico Lane 8000?
The terminal offers multiple connectivity options including wired Ethernet (10/100 Base-T) and optional wireless connectivity via WiFi and Bluetooth (including BLE). It also provides USB Host and USB Slave connections, RS232 serial port, and optional POE (Power over Ethernet) compliant with 802.3af.
What are the physical dimensions and weight of the Lane 8000?
The Ingenico Lane 8000 measures 7.87" x 8.07" x 1.73" (200 x 205.5 x 44 mm) and weighs 28.08 ounces (796 grams). The compact design makes it suitable for various retail checkout configurations and counter spaces.
What security features protect against theft and unauthorized access?
The Lane 8000 includes Kensington lock receptacles for cable security and optional secure mounting solutions to prevent theft. Combined with its PCI PTS 5.x certification and advanced cryptographic processing, the terminal provides comprehensive security for retail payment environments.
