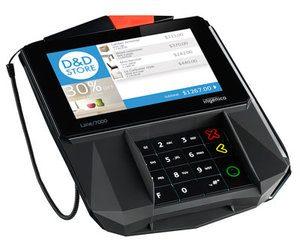

Ingenico LAN700-USSCN06A Payment Terminal
Ingenico Parts Accessory Model Overview
Frequently Asked Questions
What payment methods does the Ingenico Lane 7000 terminal support?
The Lane 7000 supports all major forms of electronic payments including EMV chip & PIN, chip & sign, magstripe, signature capture, and NFC/contactless payments. It features dual-head magstripe readers, EMV Level 1 compliant smart card readers (both contact and contactless), and a dedicated NFC reader zone with backlit glass for seamless contactless transactions.
Is the Ingenico Lane 7000 PCI compliant and secure?
Yes, the Lane 7000 is PCI-PTS 5.x certified and meets the latest hardware and software security requirements. It uses the Telium TETRA OS with advanced cryptographic schemes and future-proof key length to protect payment data. Optional Kensington lock receptacles and secure mounts are also available for additional anti-theft protection.
What connectivity options are available on the Lane 7000?
The Lane 7000 offers multiple connectivity options including wired Ethernet (10/100 base T) with optional Ethernet switch, and wireless connectivity via optional WiFi and Bluetooth (including BLE). It also features USB Host and Slave ports, RS232 serial connection, and optional powered Ethernet with POE compliance (802.3af).
What are the display and input capabilities of the Lane 7000?
The Lane 7000 features a 7-inch color WVGA touchscreen display (800x480 resolution) with capacitive touch technology that supports both finger and stylus input. It includes a passive tethered stylus with a 1 million signature lifespan, along with a 15-key backlit keypad with raised markings and ADA-friendly design.
What operating temperature range does the Lane 7000 support?
The Lane 7000 operates in temperatures ranging from 32°F to 122°F (0 to +50°C) and can be stored in temperatures from -4°F to 131°F (-20 to +70°C). It maintains functionality in relative humidity up to 85% at 104°F (+40°C), making it suitable for various retail environments.
What are the memory and storage specifications of the Lane 7000?
The Lane 7000 includes 512 MB of internal Flash memory and 512 MB of RAM. It also supports optional microSD card expansion up to 32 GB for extended storage capacity. This configuration provides flexibility for retailers requiring additional application and transaction data storage.
