Full specifications (PDF)
Pin Pad:
Yes

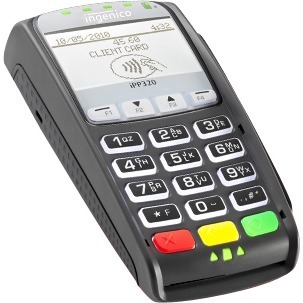

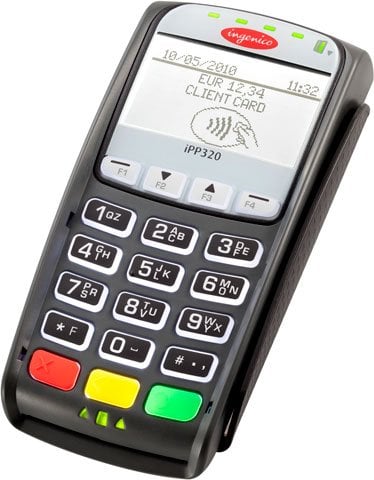

Ingenico IPP320-11P2391A Payment Terminal
Part Number:
IPP320-11P2391A
Model:
iPP320
Ingenico iPP320 Payment Terminal Model Overview
When time and space are at a premium (in retail, when are they not?), the compact iPP300 series of retail PIN Pads is the unmatched option for adaptability and convenience. This PCI PTS V3.0 certified payment solution is lightweight, stylish and self-contained. Both the iPP320 and iPP350 plug directly into your cash register for instant installation and easy integration into existing POS systems. When you need a transaction solution that maximizes performance in minimum countertop space, there is no better choice than our iPP320 or iPP350. Customer transactions are fast, private, efficient and secure.
Ingenico IPP320-11P2391A Payment Terminal Overview
Consumer facing payment solutions designed for the retail & banking markets
- Security
- Smartcard
- Magstripe
- Contactless
The iPP 320 optimizes countertop retail and banking checkout with a fast, secure payment solution. It enables retailers to accept credit and debit card electronic payment transactions that require a PIN. Our iPP 320 is easily connected to cash registers and collection systems, and accept NFC/contactless payments.
Highest Security
The iPP 320 meets the latest hardware and software security requirements. PCI PTS 3.x certified, iPP 320 ensures secure data and application management and enable highly secured electronic transactions. It also complies with SRED and Open protocol modules. The optional PIN privacy shield ensures PIN-entry confidentiality.
All Payment Options
In addition to accepting EMV chip & PIN, magstripe, and NFC/contactless payment, the iPP 320 also supports new technologies such as NFC loyalty, couponing, wallets and QR codes.
Fast Checkout
Robust and optimized for fast checkout, the IPP 320 is designed to meet the needs of intense retail environments. Very compact, the iPP 320 requires minimum counter space and provides easy handling. Large 15-key backlit keypad, LCD display and function keys allow comfortable, convenient interactions.
All Connectivity & Communication
The iPP 320 connects to an ECR, a POS or a PC via direct connection, such as Ethernet, RS232 or Tailgate. The plug & play iPP 320 is equipped with a single multi-point mono connector cable for seamless integration.
Designed for retail
Robust and optimized for fast checkout, convenient interactions.
Technical Information
Processor & Chipset
Processor Manufacturer:
ARM
Processor Type:
ARM9
Memory
Standard Memory:
32 MB
Flash Memory:
128 MB
Display & Graphics
Display Color:
Monochrome
Display Screen Type:
LCD
Screen Resolution:
128 x 64
Network & Communication
Ethernet Technology:
Ethernet
Near Field Communication:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
Serial:
Yes
Built-in Devices
Built-in Devices:
- Contactless Reader
- Magnetic Stripe Reader
- Smart Card Reader
Keyboard/Keypad
Number of Keys:
15
Software
Operating System:
Telium 2
Physical Characteristics
Height:
1.6"
Width:
3.3"
Length:
6.6"
Weight (Approximate):
9.41 oz
Miscellaneous
Certifications & Standards:
- PCI PTS 2.x
- PCI PTS 3.x
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
43211720
Recommended Accessories
Category
- Cables, Connectors, and Adapters (11)
- Docks and Cradles (1)
- Mounting Hardware and Stands (7)
- Payment Terminal Accessories (2)
- Power Device (1)
Recommended Accessories for Model: Ingenico IPP320-11P2391A Payment Terminal
Top Cables, Connectors, and Adapters Purchased With Ingenico IPP320-11P2391A
-
Ingenico 296100039AB AccessoryCables, Connectors, and Adapters, Ingenico, 2m 5V USB cable, type A powered from USB source, straight$25.40 -
Ingenico 296111170AD Cables, Connectors, and AdaptersCables, Connectors, and Adapters, Ingenico, 2m long straight cable. Use with appropriate external power supply. (Not suitable for IBM registers)In Stock$42.08 -
Ingenico CAB350901 Cables, Connectors, and AdaptersCables, Connectors, and Adapters, Ingenico, 2m Ethernet cable with RJ45 socket termination. Use with appropriate external power supply.$55.20
Top Docks and Cradles Purchased With Ingenico IPP320-11P2391A
-
Ingenico 296115032 AccessoryDocks & Cradles, Ingenico, IPP3XX cradle. When used on an Ingenico stand, requires use of adapter plate$20.23
Top Mounting Hardware and Stands Purchased With Ingenico IPP320-11P2391A
-
Ingenico SEN351249 AccessoryMounting Hardware & Stands, Ingenico, Kensington T-bar lock. For use on IPP3XX Spacepole standIn Stock$33.35 -
Ingenico SEN351262 AccessoryMounting Hardware & Stands, Ingenico, Spacepole circular 3lue pad$26.34 -
Ingenico BOX350769 AccessoryMounting Hardware & Stands, Ingenico, Glue Pad Kit for all ENS stands, Works with old and new ENS standsIn Stock$27.39
Top Payment Terminal Accessories Purchased With Ingenico IPP320-11P2391A
-
Ingenico 179901469 AccessoryPower Supply, 120 v, AC/8V DC FOR IPP320/350Please Call for Pricing or to Purchase -
$25.50
Top Power Device Purchased With Ingenico IPP320-11P2391A
-
Ingenico CAB351380 Power DevicePower Systems & Supplies, Ingenico, The foundation of a breakaway cable system when used in conjunction with the umbilical cable (Part# 296141785AC). It is used with a COMBOX (Part# 296148891AB) or VBOX (Part# 296209868)In Stock$37.57
Questions? Get help from
a POS Expert!
a POS Expert!
The Ingenico IPP320-11P2391A Payment Terminal is also known as
ING-IPP320-USSCN11A
or IPP32011P2391A.
