Impinj WES-SPEEDWAY Wesco
Part Number:
WES-SPEEDWAY
Model:
Speedway Revolution
Full specifications (PDF)

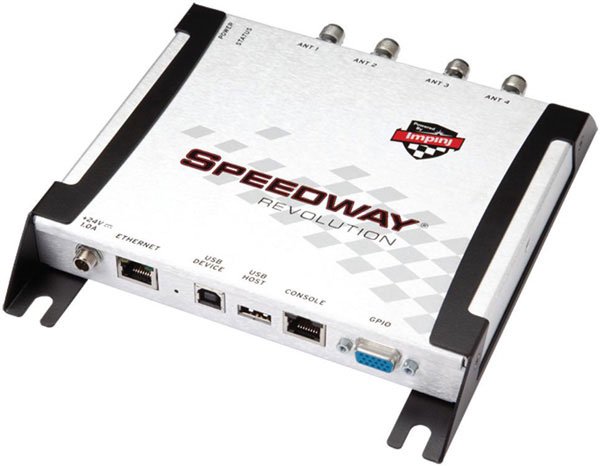

Impinj Speedway Revolution RFID Reader Model Overview
The Impinj Speedway® Revolution UHF Gen 2 RFID Reader combines advanced technology with user-friendly features to ensure superior performance in various application environments. Designed for both ease of deployment and maintenance, this innovative reader utilizes Autopilot technology to automatically adapt to changing conditions, optimizing performance without the need for RFID expertise. Whether you're tracking cases, pallets, or individual items, the Speedway Revolution is engineered to grow and evolve with your business needs, delivering exceptional reliability and efficiency at every stage.
Key Features
Specifications
Key Features
- Autopilot Technology - Automatically senses and configures settings for optimal performance.
- Power over Ethernet (PoE) - Simplifies deployment and reduces operational costs.
- High Transmit Power - Capable of overcoming cable losses for enhanced readability.
- Dynamic Antenna Switching - Improves throughput by focusing on the antennas with the largest tag populations.
- Enterprise-Class Management - Seamless integration with leading software solutions.
Specifications
- Air Interface Protocol: EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
- Transmit Power: +10.0 to +30.0 dBm (PoE)
- Max Receive Sensitivity: -82 dBm
- Ports: 2 (R220) or 4 (R420) high-performance antenna ports
- Operating Temperature: -20 °C to +50 °C
- Environmental Sealing: IEC IP52
- Dimensions: 7.5 x 6.9 x 1.2 in (19 x 17.5 x 3 cm)
- Weight: 1.5 lbs (24.5 oz)
- Power Consumption: Idle: 3W, Typical: 11.5W, Max: 15W
Brand
Impinj
Model
Speedway Revolution
