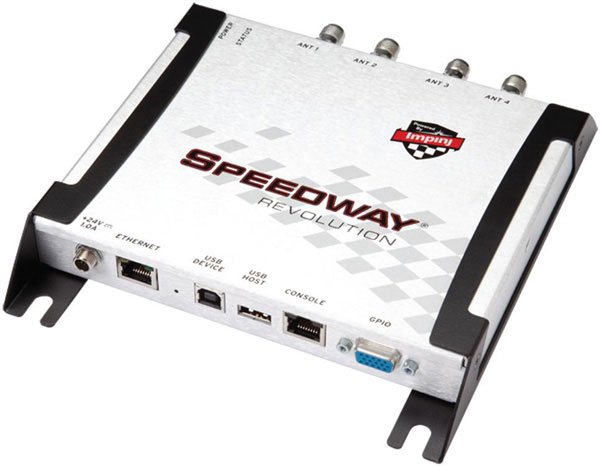

Impinj Speedway Revolution RFID Reader Model Overview
The Impinj Speedway® Revolution UHF Gen 2 RFID Reader combines advanced technology with user-friendly features to ensure superior performance in various application environments. Designed for both ease of deployment and maintenance, this innovative reader utilizes Autopilot technology to automatically adapt to changing conditions, optimizing performance without the need for RFID expertise. Whether you're tracking cases, pallets, or individual items, the Speedway Revolution is engineered to grow and evolve with your business needs, delivering exceptional reliability and efficiency at every stage. Key Features
Autopilot Technology - Automatically senses and configures settings for optimal performance.
Power over Ethernet (PoE) - Simplifies deployment and reduces operational costs.
High Transmit Power - Capable of overcoming cable losses for enhanced readability.
Dynamic Antenna Switching - Improves throughput by focusing on the antennas with the largest tag populations.
Enterprise-Class Management - Seamless integration with leading software solutions.
Specifications
Air Interface Protocol: EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
Transmit Power: +10.0 to +30.0 dBm (PoE)
Max Receive Sensitivity: -82 dBm
Ports: 2 (R220) or 4 (R420) high-performance antenna ports
Operating Temperature: -20 °C to +50 °C
Environmental Sealing: IEC IP52
Dimensions: 7.5 x 6.9 x 1.2 in (19 x 17.5 x 3 cm)
Weight: 1.5 lbs (24.5 oz)
Power Consumption: Idle: 3W, Typical: 11.5W, Max: 15W
Impinj IPJ-REV-R420-USA1M1 RFID Reader Overview
The Speedway Revolution RFID reader also delivers increased application flexibility via support for Power over Ethernet (PoE), which simplifies deployment and dramatically reduces cost by eliminating the need for AC outlet installation at read points.
And this revolutionary RFID reader improves upon the advanced hardware capabilities that made the original Speedway the reader of choice for many demanding customers capabilities such as best receive sensitivity, interference rejection, and item-level carrier cancellation.
Impinj, defining the future of RFID, where superior performance comes easy.
Speedway Revolution R220/R420 Console Cable for connecting to the Impinj RShell management console through the serial console port on the Speedway Revolution reader.
Item on backorder — chat for lead time
$42.00
Top Far Field RFID Antenna Purchased With Impinj IPJ-REV-R420-USA1M1
Speedway Revolution R220/R420 Console Cable for connecting to the Impinj RShell management console through the serial console port on the Speedway Revolution reader.
What is the Zebra TC22R Integrated Handheld RFID Reader?
The Zebra TC22R Integrated Handheld RFID Reader is an all-in-one Android mobile computer with built-in UHF RFID, a 1D/2D barcode scanner and NFC in a single lightweight device. Unlike sled-based readers that clip a separate RFID module onto a mobile computer, the TC22R combines both functions in one unit weighing 20.07 oz. (569 g).
It is used for inventory cycle counting, item finding and mobile POS in retail and hospitality; product, component and work-in-progress tracking in light manufacturing; asset tracking and document management in government; and loading, inbound and outbound verification in transportation and logistics.
How fast and how far can the TC22R read RFID tags?
The Zebra TC22R reads up to 1,300 RFID tags per second with a nominal read range of 40 ft. (12.2 m) from its integrated 4 dBi antenna. It supports the EPC Class 1 Gen 2 and EPC Gen 2 V2 standards and uses Zebra proprietary RFID radio technology.
Frequency and power output vary by region: 902–928 MHz at 0–36 dBm EIRP in the US; 865–868 MHz at 0–33 dBm ERP in the EU; and 916–921 MHz with listen-before-talk at 0–36 dBm EIRP in Japan.
What is the difference between the TC22R and a handheld RFID sled?
The difference is form factor. The TC22R is an integrated reader — the RFID radio, antenna, barcode scanner and Android computer are all one device. A sled, such as the Zebra RFD40 or RFD90, is a separate RFID module that attaches to a mobile computer you already own.
The TC22R suits teams that want a single lightweight device with less fatigue during extended cycle counts and no pairing or adaptor management. A sled suits teams standardized on an existing mobile computer fleet, or those that need the longer read ranges larger external antennas provide.
Does the TC22R run Android, and can it be managed with our existing MDM?
Yes. The Zebra TC22R is a fully integrated Android-based solution that can be supported by mainstream mobile device management (MDM) platforms, which reduces deployment headaches and management overhead. For the current list of supported Android versions, see www.zebra.com/android-versions.
It runs a 5430 hexa-core 2.1 GHz processor with 6 GB RAM and 64 GB Flash, and connects over Wi-Fi 6E (802.11ax, 2x2 MU-MIMO, dual band simultaneous) and Bluetooth 5.2. Security includes WPA3 Personal and WPA3 Enterprise, including 192-bit mode (GCMP256), with EAP-TLS, PEAP and other enterprise authentication methods.
How durable is the TC22R, and can it be used in warehouses and cold environments?
The Zebra TC22R is IP65-sealed against dust and low-pressure water jets, and is specified for multiple 5 ft. (1.5 m) drops to concrete and 500 tumble cycles (1,000 drops from 1.6 ft. / 0.5 m) at room temperature. It withstands ±15 kV air discharge and ±8 kV direct electrostatic discharge.
Its operating temperature range is 14° F to 122° F (-10° C to +50° C) at 5–95% non-condensing humidity, with storage from -40° F to 158° F (-40° C to +70° C). That covers most warehouse, backroom and light manufacturing floors, but not freezer or cold-chain work below 14° F (-10° C).
Can the TC22R scan barcodes and read NFC as well as RFID?
Yes. Alongside UHF RFID, the Zebra TC22R includes an SE4710 1D/2D scan engine for barcode capture and an integrated NFC reader supporting ISO 14443 Type A and B, MIFARE, FeliCa and ISO 15693 cards, and NFC Forum tags 2, 3, 4 and 5. Host Card Emulation and contactless payment support enable mobile POS and line-busting applications.
The device also has a forward-facing 16 MP camera and a front-facing 5 MP camera, a 6.0 in. Full HD+ (1080 x 2160) 450-nit display with bare or gloved fingertip input, and a user-removable 7,000 mAh PowerPrecision+ battery that reports real-time battery metrics.
What is the read rate of the Zebra TC22R RFIF Reader?
The Zebra TC22R delivers an industry-leading read rate of up to 1,300 tags per second, enabling rapid data capture and real-time inventory insights in fast-paced warehouse and logistics environments. This high-speed performance allows your team to process large volumes of assets efficiently without slowing down operations. We offer the TC22R to help you maximize productivity during peak inventory cycles.
Is the Zebra TC22R suitable for all-day warehouse use?
Yes, the TC22R is specifically designed for extended all-day use with its lightweight ergonomic construction and all-touch design that minimizes worker fatigue. The device features a robust 7,000 mAh Li-Ion battery that provides extended runtime, and its user-removable battery design allows for quick swaps during long shifts. Contact us today to learn how the TC22R can support your team's daily operations.
What wireless connectivity options does the TC22R offer?
The Zebra TC22R is equipped with Bluetooth v5.2 and Wi-Fi 6 capabilities, ensuring simplified deployment and improved connectivity across your facility. These wireless standards enable fast and reliable communication between the reader and your enterprise systems, supporting seamless real-time data synchronization. Visit barcodesinc.com to explore how these connectivity features integrate with your existing infrastructure.
Can the Zebra TC22R operate in harsh warehouse environments?
The TC22R features IP65 sealing and operates reliably across a temperature range of 14°F to 122°F (-10°C to +50°C), making it suitable for varied warehouse conditions. The IP65 rating protects against dust and water spray, ensuring durability in demanding logistics environments. We offer the TC22R for operations requiring dependable performance in challenging conditions.
What is the display size and resolution of the TC22R?
The Zebra TC22R features a 6.0-inch Full HD+ display with 1080 x 2160 resolution, providing clear visibility for all-touch Android operations and real-time data capture. The high-resolution screen ensures workers can easily view inventory details, barcodes, and application interfaces during asset tracking tasks. Contact us today to see how this display enhances usability in your warehouse operations.
Does the TC22R support NFC technology for mobile POS applications?
Yes, the Zebra TC22R includes an integrated NFC reader that supports mobile POS applications and enables quick data capture beyond traditional RFID functionality. This dual-technology approach allows your team to handle diverse asset tracking and transaction scenarios with a single device. Visit barcodesinc.com to explore how the TC22R's NFC capabilities can expand your operational flexibility.
The Impinj IPJ-REV-R420-USA1M1 RFID Reader is also known as
IPJ-REV-R420-USA1M1
