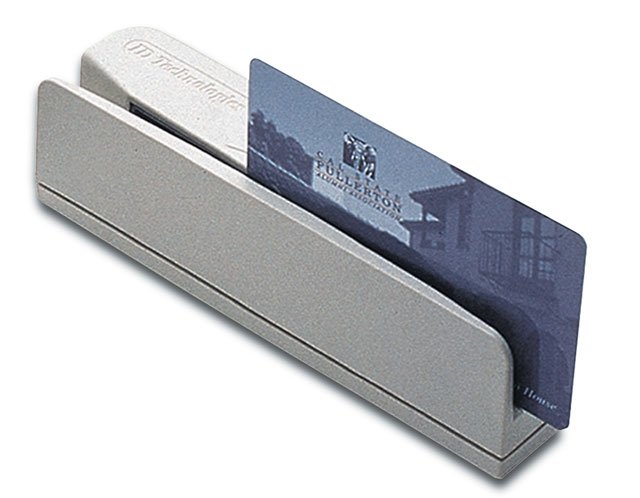

WCR3331-33QU Credit Card Reader

The EasyMag Intelligent Swipe Reader is a versatile and reliable solution for reading magnetic stripes in busy retail environments. With its exceptional capability to read up to three tracks of information from cards in either direction, this swipe reader assures accurate transactions every time. The design caters to leniency with imperfect cards, while the beeper and LED indicators provide quick feedback on successful reads. Options for mounting include free-standing, velcro, or permanent setups, making it perfect for various applications without compromising speed or reliability.

Key features:

• Bi-directional reading: Reads magnetic stripes in both directions for flexibility.
• Durable design: Tolerates bent or imperfect cards for dependable use.
• Multiple mounting options: Free-standing, or permanent mounting available.
• Intelligent editing: Capable of editing, rearranging, and validating magnetic card data.

Specifications:

• Electrical:
  • 5VDC/70mA (power adapter regulated 5VDC/350mA)
• Environmental:
  • Operating Temperature: 32F to 131°F (0°C to 55°C)
  • Storage Temperature: -22°F to 158°F (-30°C to 70°C)
  • Humidity: Maximum 95% non-condensing
• Reliability:
  • Electronics MTBF: 125,000 POH
  • Magnetic Head Life: 1,000,000 passes minimum
  • Warranty: One year, parts and labor
• Mechanical:
  • Swipe Speed: 3 to 55 inches per second, bi-directional
  • Card Width: .01 to .055 inches
  • Slot Width: Maximum card thickness: .055 (1.37mm)
  • Dimensions: Length: 5.22 inches (133mm), Width: 1.25 inches (32mm), Height: 1.6 inches (41mm)
  • Weight: Approximately 8 oz. (with cabling)
