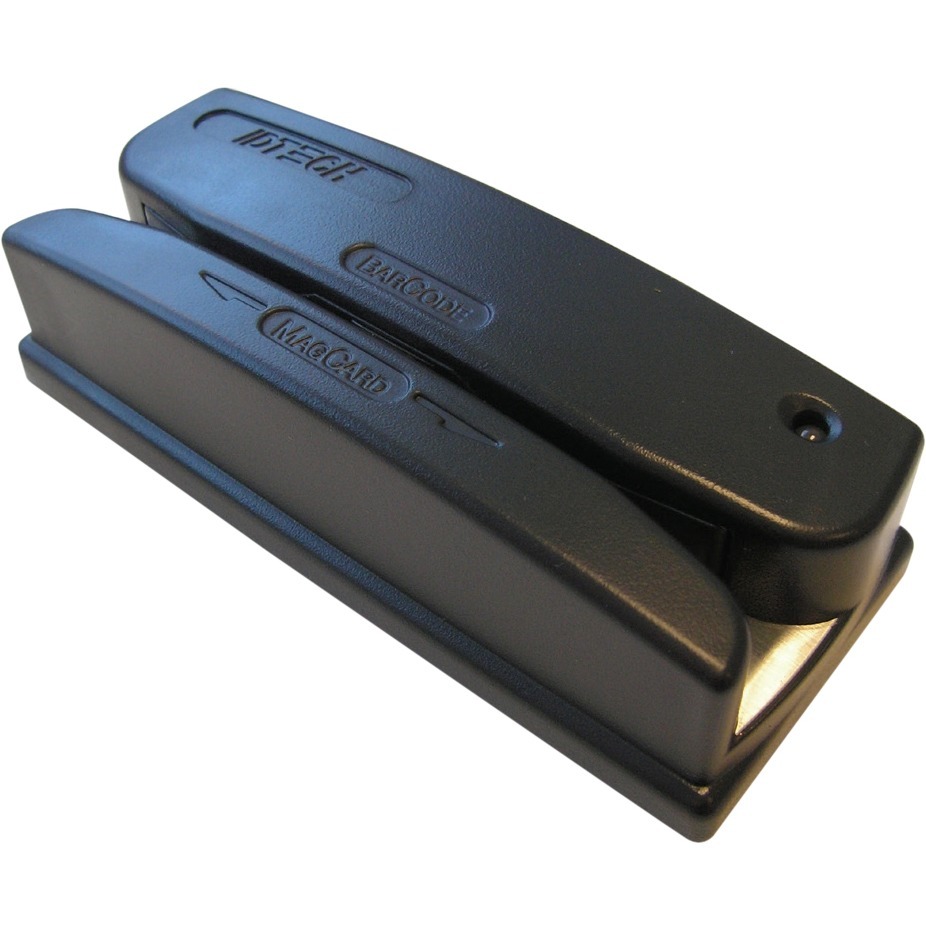

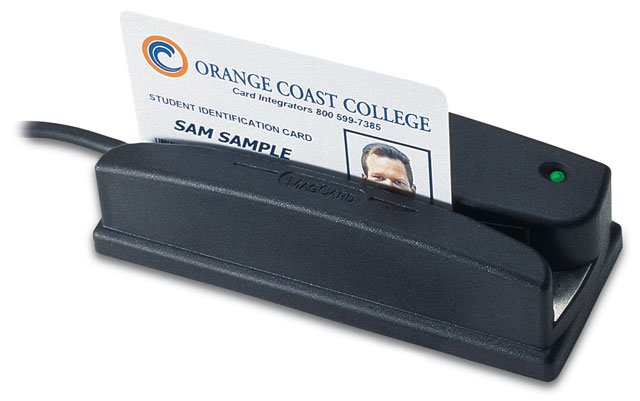

ID Tech WCR3297-600 Barcode Card Reader

ID Tech Omni - ID TECH Omni WCR32 Magnetic Stripe Reader - 60 in/s - Wiegand - Black
  • TTL, KB, RS232, USB-KB, USB-RS232 and Wiegand interfaces
  • Reads most barcodes symbologies and/or MagStripe Data
  • Superior reading of jitter, scratched, and worn MagStripe Cards
  • Dual sided MagStripe head versions available
  • Die-cast metal plate allows flexible mounting options
  • Rugged weatherproof design with sealed or extended temperature options
  • Reliable for a minimum of 1,000,000 passes
  • Signifies successful reads with a beeper and LED indicator
  • Data output can be programmed into needed format
  • Reads up to 3 tracks of information
Read More
$167.03
Add to Quote
ID Tech Omni Barcode Card Reader Model Overview
The ID Tech Heavy Duty Omni Barcode-Stripe Reader can read barcodes and magnetic stripe reader. In addition to rugged housing, the Omni Barcode-Stripe Reader has a metal base with tapped holes and rubber feet, and can be Velcro mounted. Multi-colored LED (not on TTL). The cable can exit at the end, side or straight down. Options include visible or infrared barcode scanning; as well as TTL, RS-232, keyboard wedge (AT/XT, PS/2, or Mac), Weigand or USB interface options.
ID Tech WCR3297-600 Barcode Card Reader Overview

The Omni reader is originally designed for the demanding Access Control and Time & Attendance markets. Its die cast metal base, stainless steel wear plate, and impact-resistant housing make Omni ideal for the growing market of self-service and un-attended applications. The Omni reads up to three tracks of magnetic information with a single swipe in either direction. Omni reads most bar code symbologies; both visible or infrared bar code data and/or MagStripe data, both in a single swipe. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application communication requirements.

Technical Information
Minimum Swipe Speed:
3 in/s
Maximum Swipe Speed:
60 in/s
Number of Swipes (Head Life):
1000000
Interfaces/Ports
Wiegand:
Yes
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Product Color:
Black
Height:
1.4"
Width:
2.1"
Length:
5"
Weight (Approximate):
1.40 lb
Miscellaneous
Additional Information:
  • Reads both magnetic stripe and barcode media
  • Reliable for over 1,000,000 card swipes
  • Superior reading of high jitter, scratched, and worn MagStripe cards
  • Metal base can be securely mounted with cable exits from side, end, or bottom
  • Weatherproof, sealed or extended temperature versions are available
  • Dual sided MagStripe head versions option
  • Red or infrared bar code reader option
Item Numbers
UNSPSC: 43211702
