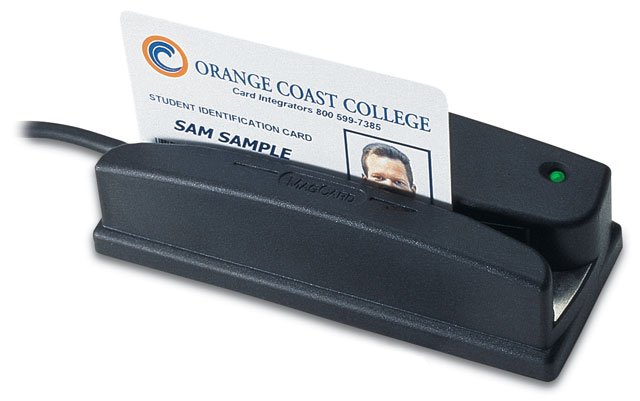

ID Tech WCR3237-733U Barcode Badge ID Reader

ID Tech Omni Barcode-Stripe Reader - ID TECH Omni WCR32 Magnetic Stripe Reader - Triple Track - 60 in/s - USB - Black
$229.82
In Stock:
Ships Same Day

Full specifications (PDF)

The Omni Barcode-Stripe Reader scans barcodes printed on paper, card stock, or plastic.
The ID Tech Heavy Duty Omni Barcode-Stripe Reader can read barcodes and magnetic stripe reader. In addition to rugged housing, the Omni Barcode-Stripe Reader has a metal base with tapped holes and rubber feet, and can be Velcro mounted. Multi-colored LED (not on TTL). The cable can exit at the end, side or straight down. Options include visible or infrared barcode scanning, as well as TTL, RS-232, Keyboard wedge (AT/XT, PS/2, or Mac), Weigand or USB interface options.
ID Tech WCR3237-733U Overview

The Omni reader is originally designed for the demanding Access Control and Time & Attendance markets. Its die cast metal base, stainless steel wear plate, and impact-resistant housing make Omni ideal for the growing market of self-service and un-attended applications. The Omni reads up to three tracks of magnetic information with a single swipe in either direction. Omni reads most bar code symbologies; both visible or infrared bar code data and/or MagStripe data, both in a single swipe. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application communication requirements.

Protect Your Product

Full specifications (PDF)

Technical Information
Number of Read Heads:
2
Magnetic Stripe Track Configuration:
Triple Track
Magnetic Stripe Track Number:
  • Track 1
  • Track 2
  • Track 3
Minimum Swipe Speed:
3 in/s
Maximum Swipe Speed:
60 in/s
Magnetic Head Life:
1000000 Swipe
Interfaces/Ports
USB:
Yes
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
Black
Height:
1.4"
Width:
2.1"
Length:
5"
Weight (Approximate):
1.40 lb
Miscellaneous
Additional Information:
  • Superior reading of high jitter, scratched, and worn MagStripe cards
  • Metal base can be securely mounted with cable exits from side, end, or bottom
  • Weatherproof, sealed or extended temperature versions are available
  • Dual sided MagStripe head versions option
  • Red or infrared bar code reader option
Item Numbers
GTIN: 0028913458091, 0072931619071, 0682017460024, 0783555029442
UPC: 028913458091, 072931619071, 682017460024, 783555029442
EAN: 0028913458091, 0072931619071, 0682017460024, 0783555029442
UNSPSC: 43211702


The ID Tech WCR3237-733U is also known as IDTech IDT-WCR3237-733U or WCR3237733U .
