WCR3237-733 Barcode Card Reader
Part Number:
WCR3237-733
Model:
Omni
Full specifications (PDF)

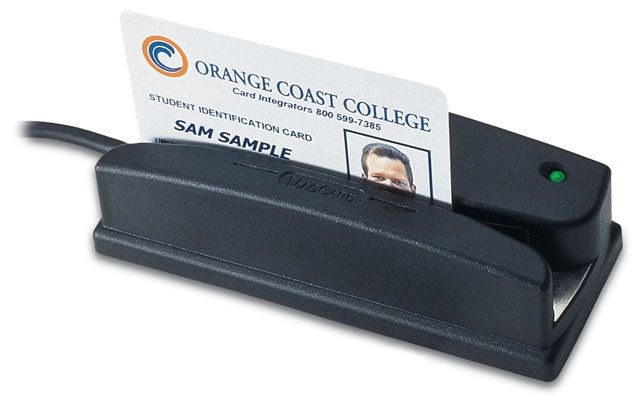

Omni Barcode Card Reader Model Overview
The ID Tech Heavy Duty Omni Barcode-Stripe Reader can read barcodes and magnetic stripe reader. In addition to rugged housing, the Omni Barcode-Stripe Reader has a metal base with tapped holes and rubber feet, and can be Velcro mounted. Multi-colored LED (not on TTL). The cable can exit at the end, side or straight down. Options include visible or infrared barcode scanning; as well as TTL, RS-232, keyboard wedge (AT/XT, PS/2, or Mac), Weigand or USB interface options.

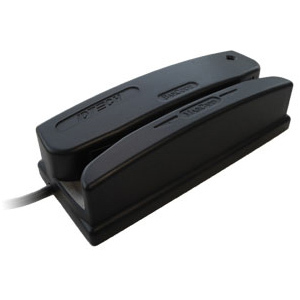

WCR3237-733 Barcode Card Reader Overview
The Omni reader is originally designed for the demanding Access Control and Time & Attendance markets. Its die cast metal base, stainless steel wear plate, and impact-resistant housing make Omni ideal for the growing market of self-service and un-attended applications. The Omni reads up to three tracks of magnetic information with a single swipe in either direction. Omni reads most bar code symbologies; both visible or infrared bar code data and/or MagStripe data, both in a single swipe. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application communication requirements.
Questions? Get help from
an ID Expert!
an ID Expert!
The WCR3237-733 Barcode Card Reader is also known as
IDT-WCR3237-733
or WCR3237733.
