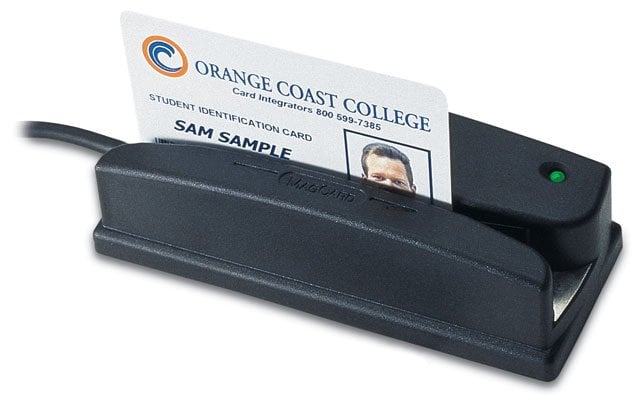

The ID Tech Heavy Duty Omni Barcode Reader. In addition to rugged housing, the Omni Barcode Reader has a metal base with tapped holes and rubber feet, and can be Velcro mounted. Multi-colored LED (not on TTL). The cable can exit at the end, side or straight down. Options include visible red or infrared barcode scanning; as well as TTL, RS-232, keyboard wedge (AT/XT, PS/2, or Mac), Weigand or USB interface options.

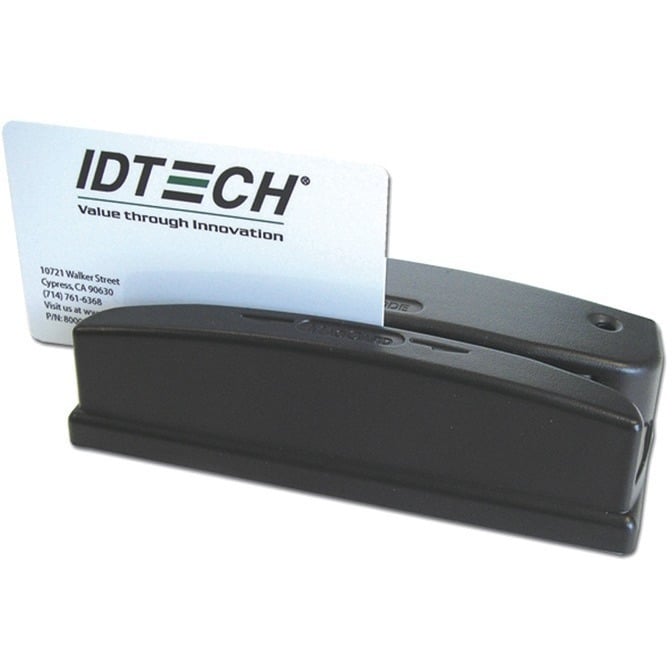

ID Tech WCR3237-700US Barcode Card Reader Overview
The Omni reader is originally designed for the demanding Access Control and Time & Attendance markets. Its die cast metal base, stainless steel wear plate, and impact-resistant housing make Omni ideal for the growing market of self-service and un-attended applications. The Omni reads up to three (varies by model) tracks of magnetic information with a single swipe in either direction.
Omni reads most bar code symbologies; both visible or infrared bar code data and/or MagStripe data, both in a single swipe. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application communication requirements.
Features:
Reads most linear bar codes symbologies and/or MagStripe Data
Available in three versions: MagStripe only, bar code only, or a combination of MagStripe and bar code
Reliable for over 1,000,000 card swipes
Superior reading of high jitter, scratched, and worn MagStripe cards
Metal base can be securely mounted with cable exits from side, end, or bottom
Weatherproof, sealed or extended temperature versions are available
The ID Tech WCR3237-700US Barcode Card Reader is also known as
IDT-WCR3237-700US
or WCR3237700US.
