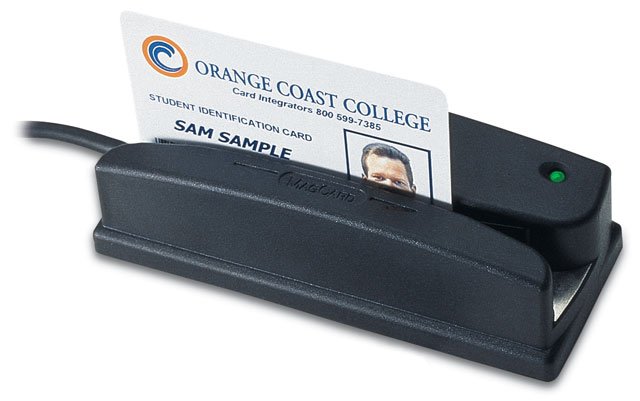

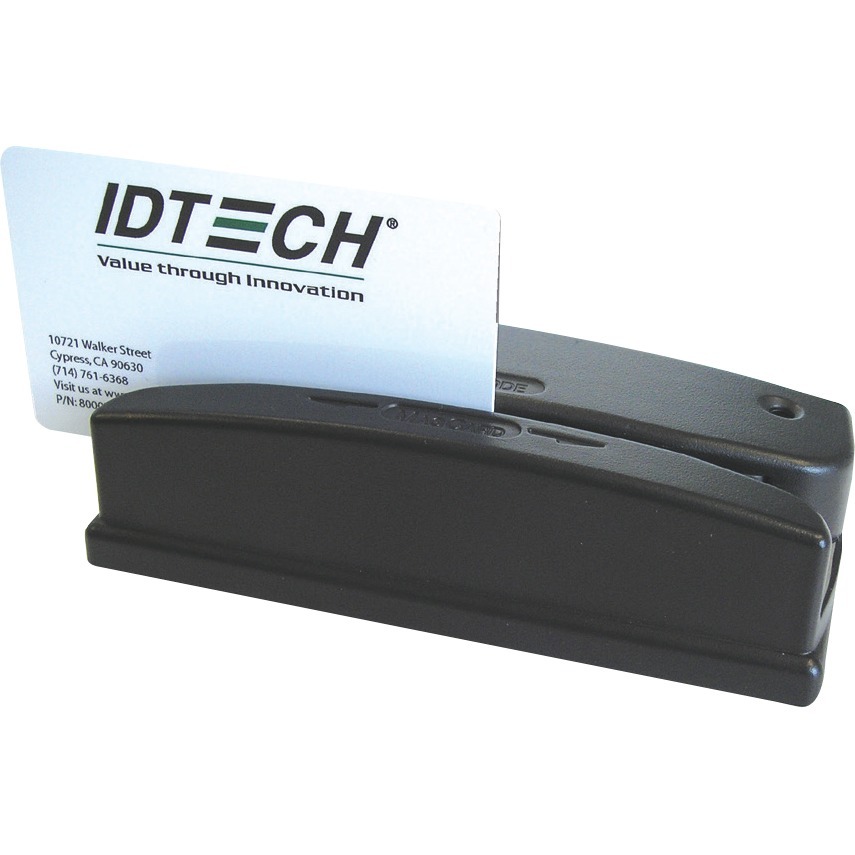

ID Tech WCR3237-612U Barcode Badge ID Reader

ID Tech Omni Barcode-Stripe Reader - ID TECH Omni Barcode & MagStripe Reader - Dual Track - 60 in/s - Black
$216.76
Global Supply Chain Constraints; Order now to be first when stock is available

Full specifications (PDF)

The Omni Barcode-Stripe Reader scans barcodes printed on paper, card stock, or plastic.
The ID Tech Heavy Duty Omni Barcode-Stripe Reader can read barcodes and magnetic stripe reader. In addition to rugged housing, the Omni Barcode-Stripe Reader has a metal base with tapped holes and rubber feet, and can be Velcro mounted. Multi-colored LED (not on TTL). The cable can exit at the end, side or straight down. Options include visible or infrared barcode scanning, as well as TTL, RS-232, Keyboard wedge (AT/XT, PS/2, or Mac), Weigand or USB interface options.
ID Tech WCR3237-612U Overview

The Omni reader is originally designed for the demanding Access Control and Time & Attendance markets. Its die cast metal base, stainless steel wear plate, and impact-resistant housing make Omni ideal for the growing market of self-service and un-attended applications. The Omni reads up to three (varies by model) tracks of magnetic information with a single swipe in either direction.

Omni reads most bar code symbologies; both visible or infrared bar code data and/or MagStripe data, both in a single swipe. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application communication requirements.

Protect Your Product

Full specifications (PDF)

Technical Information
Magnetic Stripe Track Configuration:
Dual Track
Magnetic Stripe Track Number:
  • Track 1
  • Track 2
Minimum Swipe Speed:
3 in/s
Maximum Swipe Speed:
60 in/s
Magnetic Stripe Format:
  • ISO 7811
  • AAMVA
Bi-directional Reading:
Yes
Interfaces/Ports
USB:
Yes
Physical Characteristics
Color:
Black
Height:
1.4"
Width:
2.1"
Length:
5"
Weight (Approximate):
1.40 lb
Item Numbers
UNSPSC: 43211702


The ID Tech WCR3237-612U is also known as IDTech IDT-WCR3237-612U or WCR3237612U .
