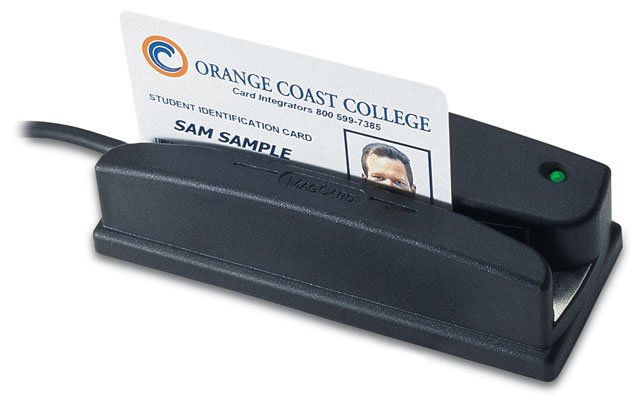

ID Tech WCR3237-600US Barcode Badge ID Reader

ID Tech Omni Barcode Reader - ID TECH Omni Magnetic Stripe Reader - Triple Track
$148.85
In Stock:
Ships Same Day

Full specifications (PDF)

The Omni Barcode Reader scans barcodes printed on paper, card stock, or plastic.
The ID Tech Heavy Duty Omni Barcode Reader. In addition to rugged housing, the Omni Barcode Reader has a metal base with tapped holes and rubber feet, and can be Velcro mounted. Multi-colored LED (not on TTL). The cable can exit at the end, side or straight down. Options include visible red or infrared barcode scanning, as well as TTL, RS-232, Keyboard wedge (AT/XT, PS/2, or Mac), Weigand or USB interface options.
ID Tech WCR3237-600US Overview
Reads MagStripes & Bar Codes

The Omni reads up to 3 tracks of information with a single swipe in either direction. In combination, the same Omni unit can read both bar code and MagStripe media. It scans bar codes printed on paper, card stock, or plastic. An infrared option is available for security-based applications, where bar codes are over-printed to prevent duplication. The data outputs are TTL, RS232, keyboard wedge, USB/KB, USB/RS232, and Wiegand interfaces.

Edits and Formats Data

The Omni's output can be formatted with terminating characters, special preamble and/or postamble character strings, and special parsing to match the data format expected by the terminal. These settings are programmed into the reader and stored in non-volatile memory.

Stands Up to Heavy Use

The Omni reader is designed for demanding applitions, such as for access control or in self-service kiosks. Its die-cast metal base, stainless steel wearplate, and impact-resistant housing make it ideal for stand-alone, high-volume applications. Its metal base can be securely mounted with screws, and cable exits are available at the side, end, or bottom of the unit. Weatherproof, sealed, or extended temperature versions are available for use in harsh environments.

Features and Benefits
  • TTL, KB, RS232, USB/KB, USB/RS232 and Wiegand interfaces
  • Reads most bar codes symbologies and/or MagStripe Data
  • Superior reading of jitter, scratched, and worn MagStripe cards
  • Dual sided MagStripe head versions available
  • Die-cast metal plate allows flexible mounting options
  • Rugged weatherproof design with sealed or extended temperature options
  • Reliable for a minimum of 1,000,000 passes
  • Signifies successful reads with a beeper and LED indicator
  • Data output can be programmed into needed format
  • Read up to 3 tracks of information
  • Threaded inserts for easy and flexible mounting
Protect Your Product

Full specifications (PDF)

Technical Information
Magnetic Stripe Track Configuration:
Triple Track
Magnetic Stripe Track Number:
  • Track 1
  • Track 2
  • Track 3
Interfaces/Ports
USB:
Yes
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Height:
1.4"
Width:
2"
Length:
5"
Weight (Approximate):
1.40 lb
Miscellaneous
Certifications & Standards:
  • CE
  • FCC
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0028893096313, 0682017459769, 0783555127797
UPC: 028893096313, 682017459769, 783555127797
EAN: 0028893096313, 0682017459769, 0783555127797
UNSPSC: 43211702


The ID Tech WCR3237-600US is also known as IDTech IDT-WCR3237-600US or WCR3237600US .
