ID Tech WCR3237-533U Credit Card Reader

ID Tech Omni - ID TECH Omni WCR32 Magnetic Stripe Reader - Triple Track - 60 in/s - USB - Black
  • TTL, KB, RS232, USB-KB, USB-RS232 and Wiegand interfaces
  • Reads most barcodes symbologies and/or MagStripe Data
  • Superior reading of jitter, scratched, and worn MagStripe Cards
  • Dual sided MagStripe head versions available
  • Die-cast metal plate allows flexible mounting options
  • Rugged weatherproof design with sealed or extended temperature options
  • Reliable for a minimum of 1,000,000 passes
  • Signifies successful reads with a beeper and LED indicator
  • Data output can be programmed into needed format
  • Reads up to 3 tracks of information
Read More
$211.09
In Stock
Add to Quote

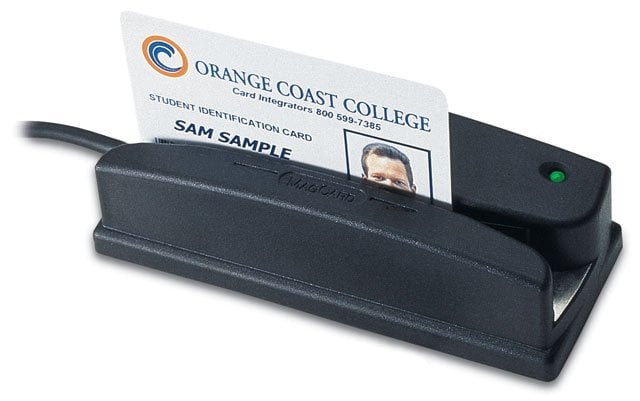

ID Tech Omni Credit Card Reader Model Overview
The ID Tech Heavy Duty Omni magnetic stripe reader. In addition to rugged housing, the Omni has a metal base with tapped holes and rubber feet, and can be Velcro mounted. Multi-colored LED (not on TTL). The cable can exit at the end, side or straight down. Options include TTL, RS-232, Keyboard wedge (AT/XT, PS/2, or Mac), Weigand or USB interface. If you need to read barcodes, please see the Omni Barcode Reader. If you need to read both barcodes and magnetic stripes, please see the Omni Barcode and Stripe Reader.
ID Tech WCR3237-533U Credit Card Reader Overview

The Omni reader is originally designed for the demanding Access Control and Time & Attendance markets. Its die cast metal base, stainless steel wear plate, and impact-resistant housing make Omni ideal for the growing market of self-service and un-attended applications. The Omni reads up to three tracks of magnetic information with a single swipe in either direction. Omni reads most bar code symbologies; both visible or infrared bar code data and/or MagStripe data, both in a single swipe. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application communication requirements.

Technical Information
Magnetic Stripe Track Configuration:
Triple Track
Magnetic Stripe Track Number:
  • Track 1
  • Track 2
  • Track 3
Minimum Swipe Speed:
3 in/s
Maximum Swipe Speed:
60 in/s
Number of Swipes (Head Life):
1000000
Interfaces/Ports
USB:
Yes
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Product Color:
Black
Height:
1.4"
Width:
2.1"
Length:
5"
Weight (Approximate):
1.40 lb
Miscellaneous
Additional Information:
  • Reads both magnetic stripe and barcode media
  • Reliable for over 1,000,000 card swipes
  • Superior reading of high jitter, scratched, and worn MagStripe cards
  • Metal base can be securely mounted with cable exits from side, end, or bottom
  • Weatherproof, sealed or extended temperature versions are available
  • Dual sided MagStripe head versions option
  • Red or infrared bar code reader option
Item Numbers
GTIN: 0028892188927, 0682017459806, 0791836548643, 5711045249204
UPC: 028892188927, 682017459806, 791836548643
EAN: 0028892188927, 0682017459806, 0791836548643, 5711045249204
UNSPSC: 43211702
