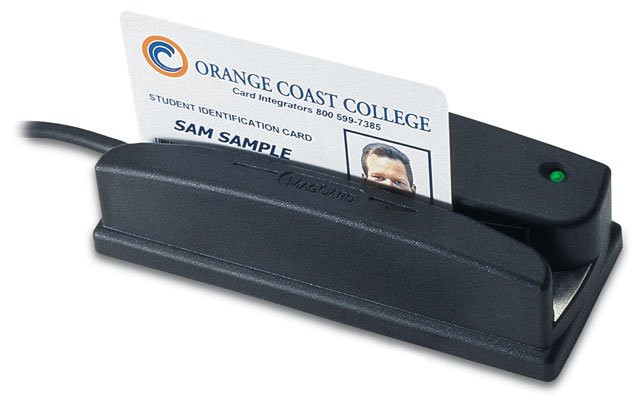

WCR3237-512C Credit Card Reader

Part Number: WCR3237-512C
Model: Omni

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Description:

  tracks 1 & 2, keyboard wedge interface weatherized MSR. Includes PS-2 'Y' cable. Color: black.

ID Tech Omni Credit Card Reader Model Overview

The OMNI Heavy Duty Slot Reader is a versatile and robust solution for scanning barcodes and magnetic stripes. With the capability to read up to three tracks of information in either direction, it ensures reliable performance in high-demand applications such as access control or self-service kiosks. Designed with a durable die-cast metal base and impact-resistant housing, this reader withstands the rigors of continuous use. Whether in harsh environments or regular settings, the Omni reader offers various environmental protections, making it a trusted choice across multiple industries.


Key Features
  • Multiple Interfaces: TTL, RS232, USB/KB, USB/RS232, and Wiegand.
  • Dual-Sided MagStripe Head: Available for versatile reading options.
  • Superior Readability: Effectively reads jittered, scratched, and worn cards.
  • Weatherproof Design: Sealed and extended temperature capabilities available.
  • Extended Lifecycle: Designed for a minimum of 1,000,000 passes.
  • Visual Indicators: Includes a beeper and LED to signify successful reads.
  • Customizable Data Output: Format can be programmed to meet terminal specifications.

Specifications
  • Power Requirements: Bar Code: +5 VDC +/-10%, 35mA Max; MagStripe: +5 VDC +/-10%, 30mA Max.
  • Operating Temperature: 32°F to 131°F (0°C to 55°C).
  • Storage Temperature: -31°F to 158°F (-35°C to 70°C).
  • Humidity: Maximum 95% non-condensing, dry storage.
  • Operating Life: 1,000 cycles minimum.
  • Dimensions: 5 inches (L) x 2.05 inches (W) x 1.38 inches (H).
  • Weight: 1.4 lbs (including power pack).
  • Cable Length: 6-foot straight cable.
  • Media Formats: UPC-A, UPC-E, EAN-8, EAN-13, Code 39, and others.
  • Media Thickness: Bar Code: 0.005 to 0.050 inches; MagStripe: 0.015 to 0.050 inches.
Brand
ID Tech
Model
Omni
