WCR3237-512 Credit Card Reader

Part Number: WCR3237-512

Model: Omni

$134.95

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Magnetic Stripe Track Configuration

Dual Track

Magnetic Stripe Track Number

Track 1Track 2

Minimum Swipe Speed

3 in/s

Maximum Swipe Speed

60 in/s

Product Description:

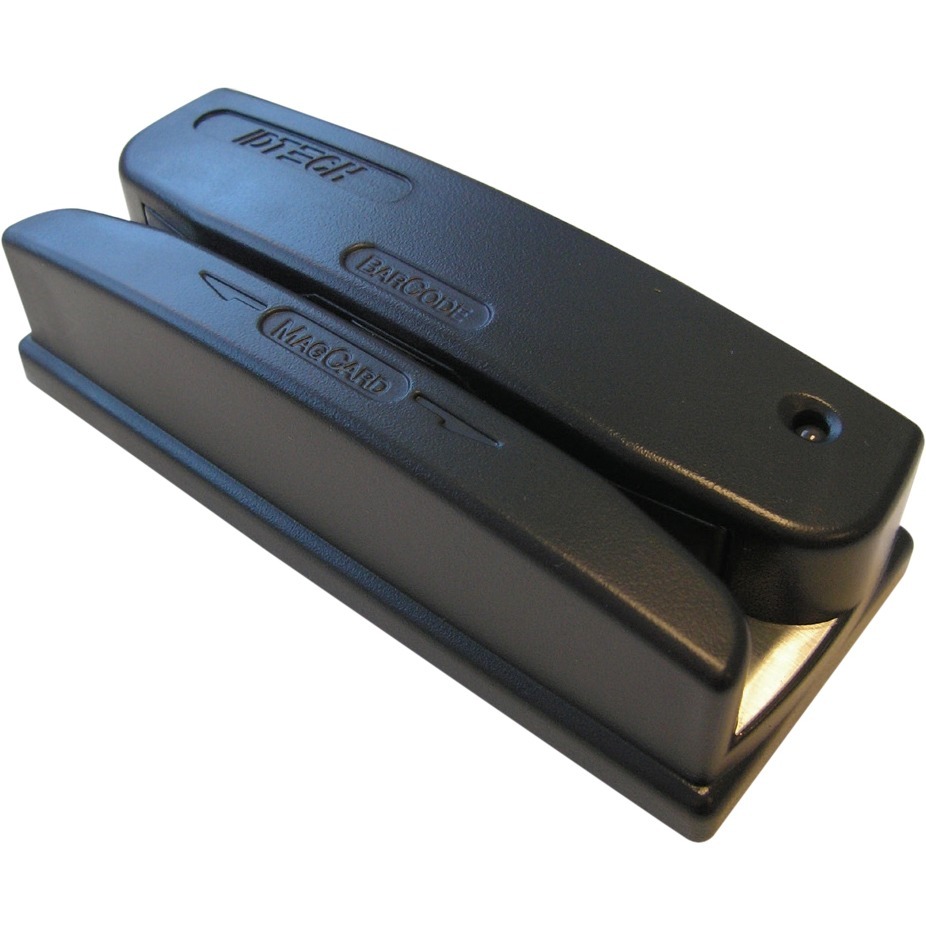

ID TECH WCR3237-512 Magnetic Stripe Reader - Dual Track - 60 in/s - Keyboard Wedge - Black

Explore all ID Tech Omni Credit Card Readers

Add to Quote

Overview

Full specifications (PDF)

ID Tech Omni Credit Card Reader Model Overview

The OMNI Heavy Duty Slot Reader is a versatile and robust solution for scanning barcodes and magnetic stripes. With the capability to read up to three tracks of information in either direction, it ensures reliable performance in high-demand applications such as access control or self-service kiosks. Designed with a durable die-cast metal base and impact-resistant housing, this reader withstands the rigors of continuous use. Whether in harsh environments or regular settings, the Omni reader offers various environmental protections, making it a trusted choice across multiple industries.

Key Features

Multiple Interfaces: TTL, RS232, USB/KB, USB/RS232, and Wiegand.
Dual-Sided MagStripe Head: Available for versatile reading options.
Superior Readability: Effectively reads jittered, scratched, and worn cards.
Weatherproof Design: Sealed and extended temperature capabilities available.
Extended Lifecycle: Designed for a minimum of 1,000,000 passes.
Visual Indicators: Includes a beeper and LED to signify successful reads.
Customizable Data Output: Format can be programmed to meet terminal specifications.

Specifications

Power Requirements: Bar Code: +5 VDC +/-10%, 35mA Max; MagStripe: +5 VDC +/-10%, 30mA Max.
Operating Temperature: 32°F to 131°F (0°C to 55°C).
Storage Temperature: -31°F to 158°F (-35°C to 70°C).
Humidity: Maximum 95% non-condensing, dry storage.
Operating Life: 1,000 cycles minimum.
Dimensions: 5 inches (L) x 2.05 inches (W) x 1.38 inches (H).
Weight: 1.4 lbs (including power pack).
Cable Length: 6-foot straight cable.
Media Formats: UPC-A, UPC-E, EAN-8, EAN-13, Code 39, and others.
Media Thickness: Bar Code: 0.005 to 0.050 inches; MagStripe: 0.015 to 0.050 inches.

WCR3237-512 Credit Card Reader Overview

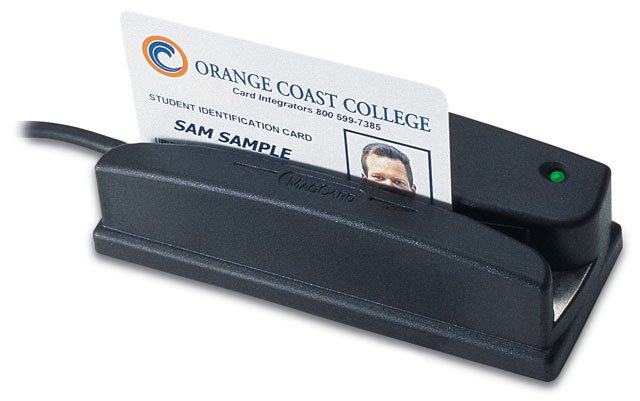

The Omni reader is originally designed for the demanding Access Control and Time and Attendance markets. Its die cast metal base, stainless steel wear plate, and impact-resistant housing make Omni ideal for the growing market of self-service and un-attended applications. The Omni reads up to three tracks of magnetic information with a single swipe in either direction. Omni reads most bar code symbologies; both visible or infrared bar code data and/or MagStripe data, both in a single swipe. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed and configured to match application communication requirements.

Detailed Specs

Full specifications (PDF)

Technical Information

Magnetic Stripe Track Configuration:

Dual Track

Magnetic Stripe Track Number:

Track 1
Track 2

Minimum Swipe Speed:

3 in/s

Maximum Swipe Speed:

60 in/s

Number of Swipes (Head Life):

1000000

Interfaces/Ports

Keyboard Wedge:

Yes

Physical Characteristics

Product Color:

Black

Height:

1.4"

Width:

2.1"

Length:

Weight (Approximate):

1.14 lb

Miscellaneous

Additional Information:

6 foot straight cable

Item Numbers

UNSPSC: 43211702
