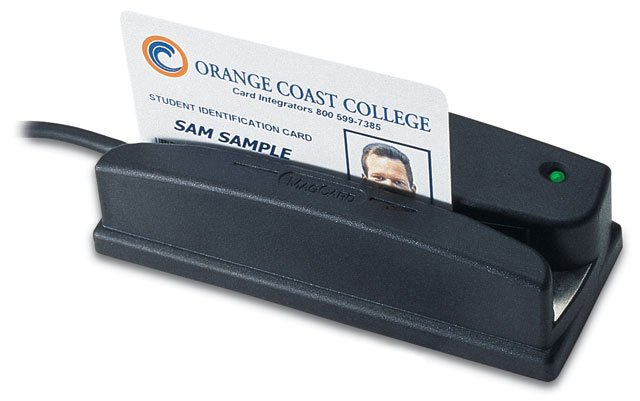

ID Tech WCR3227-733 Barcode Card Reader

Part Number: WCR3227-733

Model: Omni

$230.15

In Stock

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Magnetic Stripe Track Configuration

Triple Track

Magnetic Stripe Track Number

Track 1Track 2Track 3

Minimum Swipe Speed

3 in/s

Maximum Swipe Speed

60 in/s

Product Description:

ID TECH Omni, Barcode & MagStripe Reader - Triple Track - 60 in/s - Serial - Black

Explore all Omni Barcode Card Readers

Add to Quote

Overview

Full specifications (PDF)

Omni Barcode Card Reader Model Overview

The ID Tech Heavy Duty Omni Barcode-Stripe Reader can read barcodes and magnetic stripe reader. In addition to rugged housing, the Omni Barcode-Stripe Reader has a metal base with tapped holes and rubber feet, and can be Velcro mounted. Multi-colored LED (not on TTL). The cable can exit at the end, side or straight down. Options include visible or infrared barcode scanning; as well as TTL, RS-232, keyboard wedge (AT/XT, PS/2, or Mac), Weigand or USB interface options.

ID Tech WCR3227-733 Barcode Card Reader Overview

The Omni reader is originally designed for the demanding Access Control and Time & Attendance markets. Its die cast metal base, stainless steel wear plate, and impact-resistant housing make Omni ideal for the growing market of self-service and un-attended applications. The Omni reads up to three (varies by model) tracks of magnetic information with a single swipe in either direction. Omni reads most bar code symbologies; both visible or infrared bar code data and/or MagStripe data, both in a single swipe. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application communication requirements.

Detailed Specs

Full specifications (PDF)

Technical Information

Magnetic Stripe Track Configuration:

Triple Track

Magnetic Stripe Track Number:

Track 1
Track 2
Track 3

Minimum Swipe Speed:

3 in/s

Maximum Swipe Speed:

60 in/s

Number of Swipes (Head Life):

1000000

Interfaces/Ports

Serial:

Yes

Power Description

Input Voltage:

5 V DC

Physical Characteristics

Product Color:

Black

Height:

1.4"

Width:

2.1"

Length:

Weight (Approximate):

1.40 lb

Miscellaneous

Additional Information:

Reads Both Magnetic Stripe and Barcode Media.
Superior Reading of High Jitter, Scratched, and Worn MagStripe Cards.
Metal Base Can Be Securely Mounted With Cable Exits From Side, End, or Bottom.
Weatherproof, Sealed or Extended Temperature Versions are Available
Dual Sided MagStripe Head Versions Option.
Infrared Bar Code Reader.

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0088698224595

UPC: 088698224595

EAN: 0088698224595

UNSPSC: 43211702
