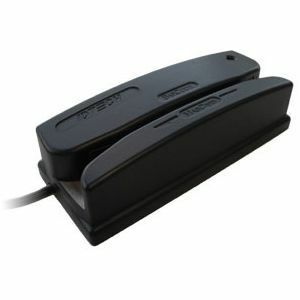

The OMNI Heavy Duty Slot Reader is a versatile and robust solution for scanning barcodes and magnetic stripes. With the capability to read up to three tracks of information in either direction, it ensures reliable performance in high-demand applications such as access control or self-service kiosks. Designed with a durable die-cast metal base and impact-resistant housing, this reader withstands the rigors of continuous use. Whether in harsh environments or regular settings, the Omni reader offers various environmental protections, making it a trusted choice across multiple industries.
Key Features
Multiple Interfaces: TTL, RS232, USB/KB, USB/RS232, and Wiegand.
Dual-Sided MagStripe Head: Available for versatile reading options.
Superior Readability: Effectively reads jittered, scratched, and worn cards.
Weatherproof Design: Sealed and extended temperature capabilities available.
Extended Lifecycle: Designed for a minimum of 1,000,000 passes.
Visual Indicators: Includes a beeper and LED to signify successful reads.
Customizable Data Output: Format can be programmed to meet terminal specifications.
Specifications
Power Requirements: Bar Code: +5 VDC +/-10%, 35mA Max; MagStripe: +5 VDC +/-10%, 30mA Max.
Operating Temperature: 32°F to 131°F (0°C to 55°C).
Storage Temperature: -31°F to 158°F (-35°C to 70°C).
Humidity: Maximum 95% non-condensing, dry storage.
Operating Life: 1,000 cycles minimum.
Dimensions: 5 inches (L) x 2.05 inches (W) x 1.38 inches (H).
Weight: 1.4 lbs (including power pack).
Cable Length: 6-foot straight cable.
Media Formats: UPC-A, UPC-E, EAN-8, EAN-13, Code 39, and others.
Media Thickness: Bar Code: 0.005 to 0.050 inches; MagStripe: 0.015 to 0.050 inches.
ID Tech WCR3227-712U Credit Card Reader Overview

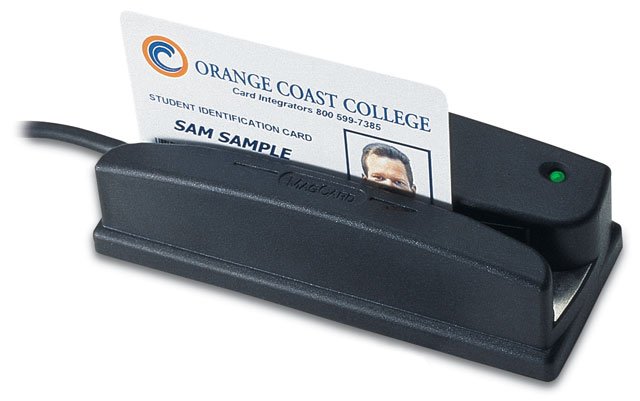

The Omni reader is originally designed for the demanding Access Control and Time & Attendance markets. Its die cast metal base, stainless steel wear plate, and impact-resistant housing make Omni ideal for the growing market of self-service and un-attended applications. The Omni reads up to three tracks of magnetic information with a single swipe in either direction. Omni reads most bar code symbologies; both visible or infrared bar code data and/or MagStripe data, both in a single swipe. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application communication requirements.
What are the key features of the Zebra DS2278 cordless barcode scanner?
The Zebra DS2278-SR00007ZZWW is a 2D imager scanner designed for general-purpose barcode reading in handheld applications. It offers cordless operation with standard range capabilities, making it ideal for warehouse and logistics environments where mobility and flexibility are essential. We offer this scanner as part of our comprehensive AIDC product lineup available from barcodesinc.com.
Is the Zebra DS2278 wireless or cordless, and what connectivity options does it support?
The DS2278-SR00007ZZWW is a cordless/wireless barcode scanner that eliminates cable constraints for improved operator mobility. It supports RF connectivity for seamless integration with warehouse management systems and mobile computing environments. Contact us today to discuss connectivity requirements and configuration options for your specific deployment.
What barcode types can the Zebra DS2278 2D imager read?
As a 2D imager scanner, the Zebra DS2278 can read both 1D linear barcodes (UPC, Code 128, etc.) and 2D matrix codes (QR codes, Data Matrix, PDF417), providing versatility across retail, warehouse, and logistics applications. This makes it suitable for modern supply chain operations that require multi-format barcode support. We have this model in stock and ready to ship from barcodesinc.com.
What is the difference between the DS2278 and previous Zebra scanner models?
The Zebra DS2278 represents an advancement in cordless scanning technology with improved 2D imaging capabilities compared to earlier CCD-based models. Its standard range performance and general-purpose design make it suitable for a broader range of warehouse and logistics applications. For detailed comparisons with other Zebra models we offer, contact us today at barcodesinc.com.
Is the Zebra DS2278 suitable for harsh warehouse environments?
The Zebra DS2278-SR00007ZZWW is engineered as an industrial-grade scanner built to withstand demanding warehouse conditions. Its rugged construction and cordless design make it well-suited for high-volume scanning operations in logistics and distribution centers. Visit barcodesinc.com or contact our team to discuss durability specifications and environmental ratings for your application.
Can I use the Zebra DS2278 scanner with my existing warehouse management system?
The Zebra DS2278 supports standard barcode scanner interfaces including USB and keyboard wedge connectivity, allowing compatibility with most warehouse management systems and point-of-sale platforms. Its wireless RF capability enables integration with mobile computing solutions for real-time inventory tracking. Our team at Barcodes Inc can help you configure the scanner for seamless WMS integration—contact us today.
Questions? Get help from a POS Expert!
The ID Tech WCR3227-712U Credit Card Reader is also known as
IDT-WCR3227-712U
or WCR3227712U.
