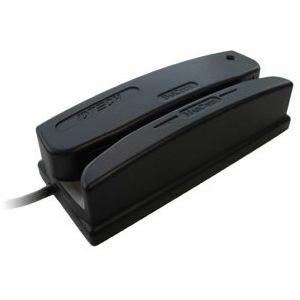

The ID Tech Heavy Duty Omni Barcode-Stripe Reader can read barcodes and magnetic stripe reader. In addition to rugged housing, the Omni Barcode-Stripe Reader has a metal base with tapped holes and rubber feet, and can be Velcro mounted. Multi-colored LED (not on TTL). The cable can exit at the end, side or straight down. Options include visible or infrared barcode scanning; as well as TTL, RS-232, keyboard wedge (AT/XT, PS/2, or Mac), Weigand or USB interface options.
ID Tech WCR3227-612U Barcode Card Reader Overview

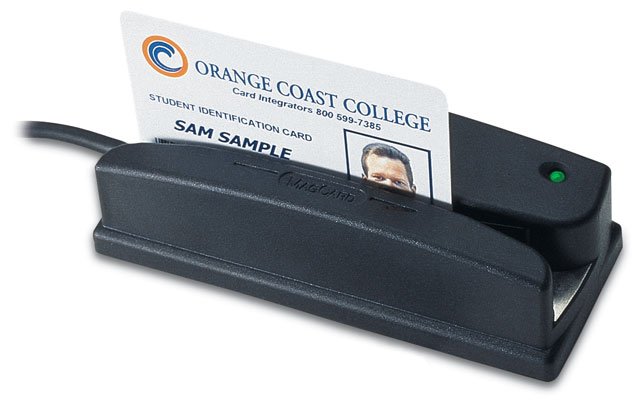

The Omni reader is originally designed for the demanding Access Control and Time & Attendance markets. Its die cast metal base, stainless steel wear plate, and impact-resistant housing make Omni ideal for the growing market of self-service and un-attended applications. The Omni reads up to three tracks of magnetic information with a single swipe in either direction. Omni reads most bar code symbologies; both visible or infrared bar code data and/or MagStripe data, both in a single swipe. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application communication requirements.
What ink cartridge colors does the Epson ColorWorks C7500G use?
The Epson ColorWorks C7500G uses four individual CMYK cartridges—Cyan, Magenta, Yellow, and Black—with pigmented ink technology. The C33S020636 cartridge we offer is the Cyan cartridge designed specifically for glossy media printing on this model.
What print quality and speed can I expect from the C7500G?
The C7500G delivers print speeds of up to 300mm/sec with an image resolution of 600x1200 dpi, powered by PrecisionCore MicroTFP line printer technology. This combination provides high-speed, high-quality color label production suitable for on-demand, short-run label printing.
Is the Epson C7500G suitable for glossy label printing?
Yes, the C7500G is specifically designed as the ultimate solution for short-run color label printing onto glossy media. Its PrecisionCore printhead ensures consistent, high-quality results on glossy substrates with BS 5609 certification, meaning labels won't smudge.
What maintenance requirements does the C7500G have?
The C7500G features a permanent printhead and Nozzle Verification Technology (NVT) for self-maintenance, resulting in low maintenance and reduced downtime. The high-yield ink cartridges are easy to change, minimizing user interventions and waste compared to thermal transfer printers.
How does the C7500G help reduce labeling costs?
The C7500G eliminates pre-printing costs by enabling on-demand, customized label production with print speeds of up to 300mm/sec. Operating costs are up to 50% lower than laser printing, making it a cost-effective solution for manufacturers managing in-house labeling needs.
What programming language does the C7500G support for system integration?
The C7500G uses the ESC/Label programming language, which allows for easy integration with virtually any operating system. This makes it simple to incorporate the printer into existing warehouse management and label production workflows.
The ID Tech WCR3227-612U Barcode Card Reader is also known as
IDT-WCR3227-612U
or WCR3227612U.
Full specifications (PDF)
