The ID Tech Heavy Duty Omni Barcode-Stripe Reader can read barcodes and magnetic stripe reader. In addition to rugged housing, the Omni Barcode-Stripe Reader has a metal base with tapped holes and rubber feet, and can be Velcro mounted. Multi-colored LED (not on TTL). The cable can exit at the end, side or straight down. Options include visible or infrared barcode scanning; as well as TTL, RS-232, keyboard wedge (AT/XT, PS/2, or Mac), Weigand or USB interface options.

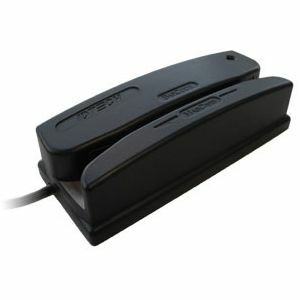

ID Tech WCR3227-612 Barcode Card Reader Overview

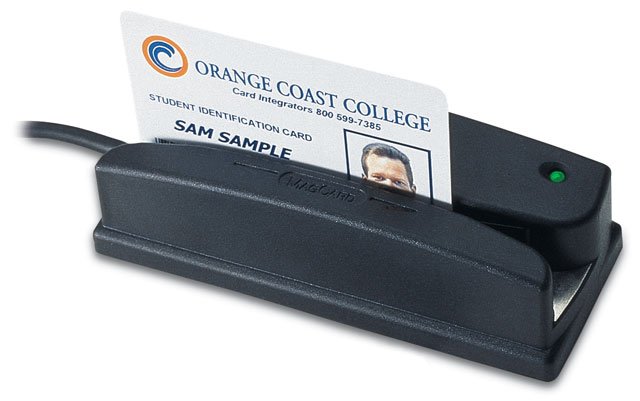

The Omni reader is originally designed for the demanding Access Control and Time & Attendance markets. Its die cast metal base, stainless steel wear plate, and impact-resistant housing make Omni ideal for the growing market of self-service and un-attended applications. The Omni reads up to three tracks of magnetic information with a single swipe in either direction. Omni reads most bar code symbologies; both visible or infrared bar code data and/or MagStripe data, both in a single swipe. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application communication requirements.
What is the Dell 407-BBOR transceiver module used for?
The Dell 407-BBOR is a GigE SFP (mini-GBIC) transceiver module designed for high-speed networking in data center and enterprise environments. It supports 1000Base-SX connectivity at 850 nm wavelength with transmission distances up to 1800 feet, making it ideal for short-to-medium range fiber optic connections within facilities.
What is the switching capacity of the Cisco C9200-24T-A?
The Cisco C9200-24T-A delivers a switching capacity of 128 Gbps, with the ability to scale up to 288 Gbps when stacked with additional units. This makes it suitable for mid-sized enterprise networks requiring reliable data routing and switching performance. We offer this model as part of our comprehensive Cisco networking portfolio at barcodesinc.com.
What barcode types does the Datalogic Magellan 900i scanner read?
The Magellan 900i decodes a comprehensive range of barcode formats including all standard 1D linear codes, GS1 DataBar codes, stacked codes like PDF417 and MicroPDF417, and 2D codes such as QR Code, Data Matrix, and Aztec Code. This versatility makes it ideal for retail environments where you need to scan everything from printed product labels to mobile coupons and loyalty cards. We offer the Magellan 900i as part of our complete barcode scanning solutions.
How many ports does the C9200-24T-A have and what are they?
The C9200-24T-A is a 24-port Gigabit Ethernet data-only switch, designed for organizations that need dedicated data connectivity without integrated power delivery. This configuration is ideal for environments where power sourcing is managed separately or not required on switch ports. Contact us today to discuss whether this model fits your network architecture.
Is the Datalogic Magellan 900i suitable for both sweep and presentation scanning?
Yes, the Magellan 900i is equally at home in both sweep and presentation scanning applications, making it a versatile addition to any point-of-sale or service counter. Its omnidirectional imaging technology allows you to read barcodes in any orientation and situation. Contact us today to learn how this flexible scanner can integrate into your specific workflow.
Which Dell networking equipment is compatible with the 407-BBOR transceiver?
The 407-BBOR transceiver is compatible with Dell networking switches and systems including the C1048, C9010, S5000, S6000, S6010, N3132, S4048, X1026, and X1052 models. We offer this module to ensure seamless integration with your existing Dell infrastructure.
What is the forwarding rate performance of the Cisco C9200-24T-A?
The C9200-24T-A achieves a forwarding rate of 95.23 Mpps (million packets per second), which scales to 214 Mpps when deployed in a stacked configuration. This performance level supports enterprise-grade throughput for data center and campus network deployments. Visit barcodesinc.com to explore this model and discuss your specific throughput requirements with our team.
What are the power requirements for the Datalogic 90A052363 Power Device?
The Datalogic Magellan 900i power supply accepts AC input of 100-240 VAC and provides 5V/7.5W DC output, making it compatible with standard electrical installations worldwide. This wide input voltage range ensures the scanner can operate reliably in different geographic locations and facility configurations. Visit barcodesinc.com for complete power specifications and compatibility details.
What are the transmission specifications for the Dell 407-BBOR?
The Dell 407-BBOR operates at 850 nm wavelength and supports 1000Base-SX (Gigabit Ethernet) transmission over multimode fiber with a maximum range of 1800 feet. This makes it suitable for intra-building and campus network deployments where longer distances are required.
Is the Dell 407-BBOR compatible with third-party networking equipment?
While the 407-BBOR is engineered specifically for Dell networking platforms, SFP transceivers generally follow industry-standard specifications. For compatibility with non-Dell equipment, we recommend contacting us today to verify specifications with your particular hardware configuration.
Can the Magellan 900i be integrated into kiosks or OEM applications?
Yes, the Magellan 900i supports optional kiosk and OEM mounting solutions, enabling seamless integration into point-of-sale systems, access control kiosks, and customer ordering stations. The scanner's compact footprint and intelligent cable routing maximize space efficiency while maintaining stability. We offer mounting accessories and integration support to help you deploy the 900i in your specific application.
Can the C9200-24T-A be stacked with other switches for increased capacity?
Yes, the C9200-24T-A supports stacking to increase overall switching capacity and forwarding rate—reaching 288 Gbps switching capacity and 214 Mpps forwarding rate in a stacked deployment. Stacking simplifies management and provides redundancy for mission-critical network environments. Our team can help you design a stacked configuration that meets your availability and performance needs—contact us today.
What type of fiber connector does the 407-BBOR use?
The Dell 407-BBOR is an SFP (small form-factor pluggable) transceiver module that uses standard fiber optic connectors compatible with multimode fiber cabling. The compact SFP design allows for high-density port configurations in modern networking switches.
What type of network environments is the C9200-24T-A best suited for?
The C9200-24T-A is designed for mid-sized enterprise networks, campus environments, and data centers requiring reliable Layer 2/3 switching with 24 Gigabit Ethernet ports. Its 128 Gbps switching capacity makes it ideal for organizations that need solid performance without the higher port density of 48-port models. We can help you determine if this model aligns with your network infrastructure goals—visit barcodesinc.com or contact us today.
What remote management capabilities does the Magellan 900i offer?
The Magellan 900i supports remote management through OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director, and Wavelink Avalanche, along with additional Value Added features included in every Magellan scanner. These enterprise-level capabilities enable centralized monitoring and configuration across your retail or logistics network. Contact us today to discuss remote management integration with your existing systems.
How can I order the Dell 407-BBOR transceiver module?
We offer the Dell 407-BBOR transceiver module as part of our comprehensive networking components inventory. Visit barcodesinc.com or contact us today to check availability, pricing, and to place your order for immediate shipment.
How does the C9200-24T-A compare to other models in the Catalyst 9200 series?
The C9200-24T-A offers 128 Gbps switching capacity and is positioned as a 24-port entry point in the Catalyst 9200 series, while 48-port models like the C9200-48T provide higher capacity at 176 Gbps. For organizations requiring higher performance with 10 Gigabit uplinks, the C9200-24PXG model delivers 352 Gbps switching capacity. We offer the full Catalyst 9200 lineup—contact us today to find the right model for your specific requirements.
What industries and applications is the Magellan 900i designed for?
The Magellan 900i is designed for diverse retail applications including point-of-sale, mobile marketing, pharmacies, convenience stores, movie theaters, and boutique environments. Its clean aesthetic and compact design allow it to blend seamlessly into any store format while maintaining high scanning performance. We can help you determine if the Magellan 900i is the right solution for your warehouse, logistics, or retail operation—visit barcodesinc.com or contact us today.
The ID Tech WCR3227-612 Barcode Card Reader is also known as
IDT-WCR3227-612
or WCR3227612.
Full specifications (PDF)
