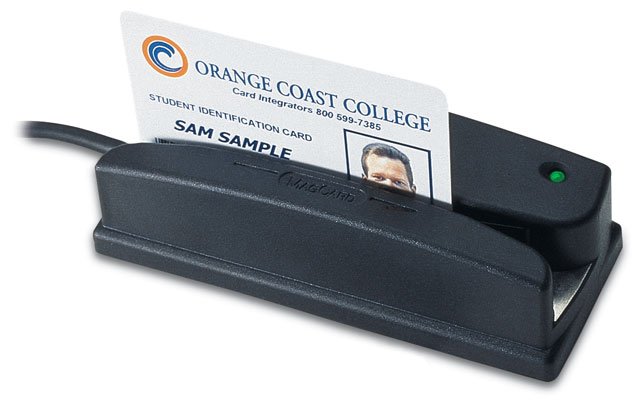

ID Tech WCR3227-600S Barcode Badge ID Reader

ID Tech Omni Barcode Reader - ID TECH Omni WCR32 Magnetic Stripe Reader - 60 in/s - Serial - Black
$123.59
In Stock:
Ships Same Day

Full specifications (PDF)

The Omni Barcode Reader scans barcodes printed on paper, card stock, or plastic.
The ID Tech Heavy Duty Omni Barcode Reader. In addition to rugged housing, the Omni Barcode Reader has a metal base with tapped holes and rubber feet, and can be Velcro mounted. Multi-colored LED (not on TTL). The cable can exit at the end, side or straight down. Options include visible red or infrared barcode scanning, as well as TTL, RS-232, Keyboard wedge (AT/XT, PS/2, or Mac), Weigand or USB interface options.
ID Tech WCR3227-600S Overview

The Omni reader is originally designed for the demanding Access Control and Time & Attendance markets. Its die cast metal base, stainless steel wear plate, and impact-resistant housing make Omni ideal for the growing market of self-service and un-attended applications. The Omni reads up to three tracks of magnetic information with a single swipe in either direction. Omni reads most bar code symbologies; both visible or infrared bar code data and/or MagStripe data, both in a single swipe. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application communication requirements.

Protect Your Product

Full specifications (PDF)

Technical Information
Minimum Swipe Speed:
3 in/s
Maximum Swipe Speed:
60 in/s
Magnetic Head Life:
1000000 Swipe
Interfaces/Ports
Serial:
Yes
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
Black
Height:
1.4"
Width:
2.1"
Length:
5"
Weight (Approximate):
1.40 lb
Miscellaneous
Additional Information:
  • Reads both magnetic stripe and barcode media
  • Reliable for over 1,000,000 card swipes
  • Superior reading of high jitter, scratched, and worn MagStripe cards
  • Metal base can be securely mounted with cable exits from side, end, or bottom
  • Weatherproof, sealed or extended temperature versions are available
  • Dual sided MagStripe head versions option
  • Red or infrared bar code reader option
Item Numbers
GTIN: 0028882081832, 0682017459677, 0735548668206
UPC: 028882081832, 682017459677, 735548668206
EAN: 0028882081832, 0682017459677, 0735548668206
UNSPSC: 43211702


The ID Tech WCR3227-600S is also known as IDTech IDT-WCR3227-600S or WCR3227600S .
