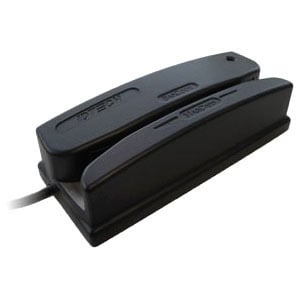

ID Tech WCR3227-533UC Credit Card Swiper

ID Tech Omni - ID TECH Omni 3227 Magnetic Stripe Reader - Triple Track - 60 in/s - Serial, USB
$202.79
Global Supply Chain Constraints; Order now to be first when stock is available

Full specifications (PDF)

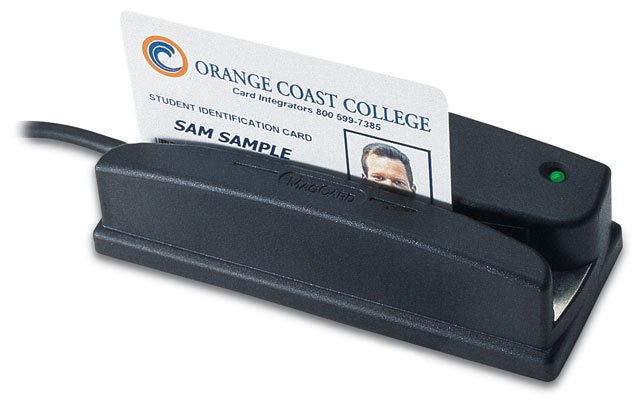

The Omni reads up to three tracks of information with a single swipe in either direction.
The ID Tech Heavy Duty Omni magnetic stripe reader. In addition to rugged housing, the Omni has a metal base with tapped holes and rubber feet, and can be Velcro mounted. Multi-colored LED (not on TTL). The cable can exit at the end, side or straight down. Options include TTL, RS-232, Keyboard wedge (AT/XT, PS/2, or Mac), Weigand or USB interface.

If you need to read barcodes, please see the Omni Barcode Reader. If you need to read both barcodes and magnetic stripes, please see the Omni Barcode and Stripe Reader.

ID Tech WCR3227-533UC Overview

The Omni 3227 Magnetic Stripe Reader is originally designed for the demanding Access Control and Time & Attendance markets. Its die cast metal base, stainless steel wear plate, and impact-resistant housing make Omni ideal for the growing market of self-service and un-attended applications. The Omni 3227 Magnetic Stripe Reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application communication requirements.

Protect Your Product

Full specifications (PDF)

Technical Information
Number of Read Heads:
2
Magnetic Stripe Track Configuration:
Triple Track
Magnetic Stripe Track Number:
  • Track 1
  • Track 2
  • Track 3
Minimum Swipe Speed:
3 in/s
Maximum Swipe Speed:
60 in/s
Magnetic Head Life:
1000000 Swipe
Interfaces/Ports
Serial:
Yes
USB:
Yes
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Height:
1.4"
Width:
2"
Length:
5"
Weight (Approximate):
1.40 lb
Miscellaneous
Additional Information:
  • Reads most bar codes symbologies and MagStripe Data
  • Signifies successful reads with a beeper and LED indicator
  • Die-cast metal plate allows flexible mounting options
  • Threaded inserts for easy and flexible mounting
Certifications & Standards:
  • ISO 7811
  • FCC
  • CE
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211702


The ID Tech WCR3227-533UC is also known as IDTech IDT-WCR3227-533UC or WCR3227533UC .
