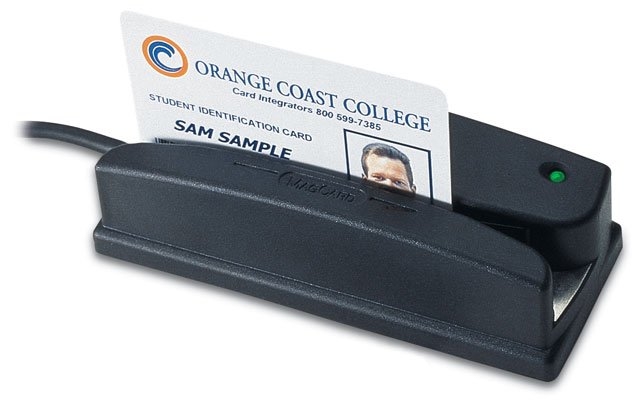

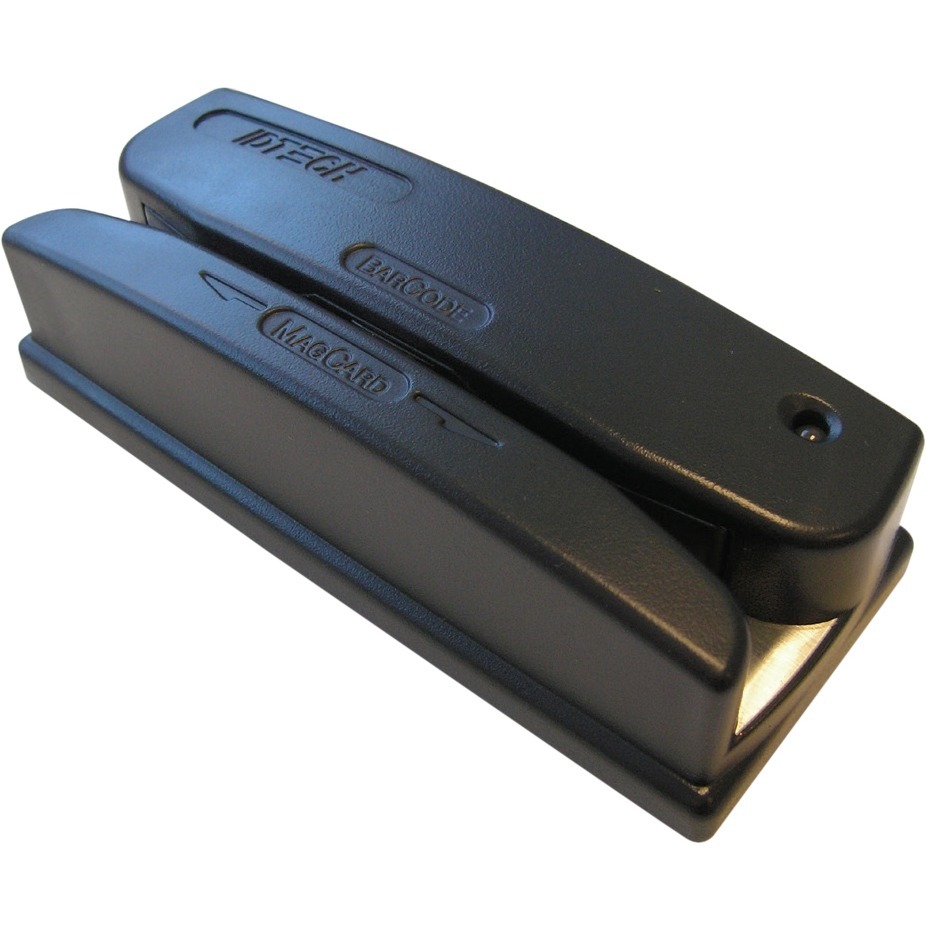

ID Tech WCR3227-533U Credit Card Reader

Part Number: WCR3227-533U

Model: Omni

$213.43

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Number of Read Heads

Magnetic Stripe Track Configuration

Dual Track

Magnetic Stripe Track Number

Track 1Track 2

Minimum Swipe Speed

3 in/s

Product Description:

ID TECH Omni 3227 Magnetic Stripe Reader - Dual Track - 60 in/s - Serial, USB, Keyboard Wedge

Explore all ID Tech Omni Credit Card Readers

Add to Quote

Overview

Full specifications (PDF)

ID Tech Omni Credit Card Reader Model Overview

The OMNI Heavy Duty Slot Reader is a versatile and robust solution for scanning barcodes and magnetic stripes. With the capability to read up to three tracks of information in either direction, it ensures reliable performance in high-demand applications such as access control or self-service kiosks. Designed with a durable die-cast metal base and impact-resistant housing, this reader withstands the rigors of continuous use. Whether in harsh environments or regular settings, the Omni reader offers various environmental protections, making it a trusted choice across multiple industries.

Key Features

Multiple Interfaces: TTL, RS232, USB/KB, USB/RS232, and Wiegand.
Dual-Sided MagStripe Head: Available for versatile reading options.
Superior Readability: Effectively reads jittered, scratched, and worn cards.
Weatherproof Design: Sealed and extended temperature capabilities available.
Extended Lifecycle: Designed for a minimum of 1,000,000 passes.
Visual Indicators: Includes a beeper and LED to signify successful reads.
Customizable Data Output: Format can be programmed to meet terminal specifications.

Specifications

Power Requirements: Bar Code: +5 VDC +/-10%, 35mA Max; MagStripe: +5 VDC +/-10%, 30mA Max.
Operating Temperature: 32°F to 131°F (0°C to 55°C).
Storage Temperature: -31°F to 158°F (-35°C to 70°C).
Humidity: Maximum 95% non-condensing, dry storage.
Operating Life: 1,000 cycles minimum.
Dimensions: 5 inches (L) x 2.05 inches (W) x 1.38 inches (H).
Weight: 1.4 lbs (including power pack).
Cable Length: 6-foot straight cable.
Media Formats: UPC-A, UPC-E, EAN-8, EAN-13, Code 39, and others.
Media Thickness: Bar Code: 0.005 to 0.050 inches; MagStripe: 0.015 to 0.050 inches.

ID Tech WCR3227-533U Credit Card Reader Overview

The Omni 3227 Magnetic Stripe Reader is originally designed for the demanding Access Control and Time & Attendance markets. Its die cast metal base, stainless steel wear plate, and impact-resistant housing make Omni ideal for the growing market of self-service and un-attended applications. The Omni 3227 Magnetic Stripe Reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application communication requirements.

Detailed Specs

Full specifications (PDF)

Technical Information

Number of Read Heads:

Magnetic Stripe Track Configuration:

Dual Track

Magnetic Stripe Track Number:

Track 1
Track 2

Minimum Swipe Speed:

3 in/s

Maximum Swipe Speed:

60 in/s

Number of Swipes (Head Life):

1000000

Interfaces/Ports

Keyboard Wedge:

Yes

Serial:

Yes

USB:

Yes

Power Description

Input Voltage:

5 V DC

Physical Characteristics

Height:

1.4"

Width:

Length:

Weight (Approximate):

1.40 lb

Miscellaneous

Additional Information:

Reads most bar codes symbologies and MagStripe Data
Signifies successful reads with a beeper and LED indicator
Die-cast metal plate allows flexible mounting options
Threaded inserts for easy and flexible mounting

Item Numbers

UNSPSC: 43211702
