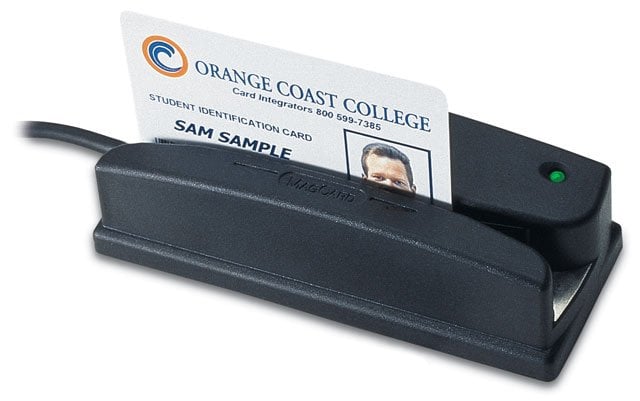

The OMNI Heavy Duty Slot Reader is a versatile and robust solution for scanning barcodes and magnetic stripes. With the capability to read up to three tracks of information in either direction, it ensures reliable performance in high-demand applications such as access control or self-service kiosks. Designed with a durable die-cast metal base and impact-resistant housing, this reader withstands the rigors of continuous use. Whether in harsh environments or regular settings, the Omni reader offers various environmental protections, making it a trusted choice across multiple industries.
Key Features
Multiple Interfaces: TTL, RS232, USB/KB, USB/RS232, and Wiegand.
Dual-Sided MagStripe Head: Available for versatile reading options.
Superior Readability: Effectively reads jittered, scratched, and worn cards.
Weatherproof Design: Sealed and extended temperature capabilities available.
Extended Lifecycle: Designed for a minimum of 1,000,000 passes.
Visual Indicators: Includes a beeper and LED to signify successful reads.
Customizable Data Output: Format can be programmed to meet terminal specifications.
Specifications
Power Requirements: Bar Code: +5 VDC +/-10%, 35mA Max; MagStripe: +5 VDC +/-10%, 30mA Max.
Operating Temperature: 32°F to 131°F (0°C to 55°C).
Storage Temperature: -31°F to 158°F (-35°C to 70°C).
Humidity: Maximum 95% non-condensing, dry storage.
Operating Life: 1,000 cycles minimum.
Dimensions: 5 inches (L) x 2.05 inches (W) x 1.38 inches (H).
Weight: 1.4 lbs (including power pack).
Cable Length: 6-foot straight cable.
Media Formats: UPC-A, UPC-E, EAN-8, EAN-13, Code 39, and others.
Media Thickness: Bar Code: 0.005 to 0.050 inches; MagStripe: 0.015 to 0.050 inches.
ID Tech WCR3227-533C Credit Card Reader Overview
Reads MagStripes & Bar Codes
The Omni reads up to 3 tracks of information with a single swipe in either direction. In combination, the same Omni unit can read both bar code and MagStripe media. It scans bar codes printed on paper, card stock, or plastic. An infrared option is available for security-based applications, where bar codes are over-printed to prevent duplication. The data outputs are TTL, RS232, keyboard wedge, USB/KB, USB/RS232, and Wiegand interfaces.
Edits and Formats Data
The Omni's output can be formatted with terminating characters, special preamble and/or postamble character strings, and special parsing to match the data format expected by the terminal. These settings are programmed into the reader and stored in non-volatile memory.
Stands Up to Heavy Use
The Omni reader is designed for demanding applitions, such as for access control or in self-service kiosks. Its die-cast metal base, stainless steel wearplate, and impact-resistant housing make it ideal for stand-alone, high-volume applications. Its metal base can be securely mounted with screws, and cable exits are available at the side, end, or bottom of the unit. Weatherproof, sealed, or extended temperature versions are available for use in harsh environments.
Features and Benefits
TTL, KB, USB/RS232 and Wiegand interfaces
Reads most bar codes symbologies and/or MagStripe Data
Superior reading of jitter, scratched, and worn MagStripe cards
Dual sided MagStripe head versions available
Die-cast metal plate allows flexible mounting options
Rugged weatherproof design with sealed or extended temperature options
Reliable for a minimum of 1,000,000 passes
Signifies successful reads with a beeper and LED indicator
Full specifications (PDF)
