Full specifications (PDF)
Magnetic Stripe Track Configuration:
Triple Track
Magnetic Stripe Track Number:
- Track 1
- Track 3
Minimum Swipe Speed:
3 in/s
Maximum Swipe Speed:
60 in/s
Number of Swipes (Head Life):
1000000

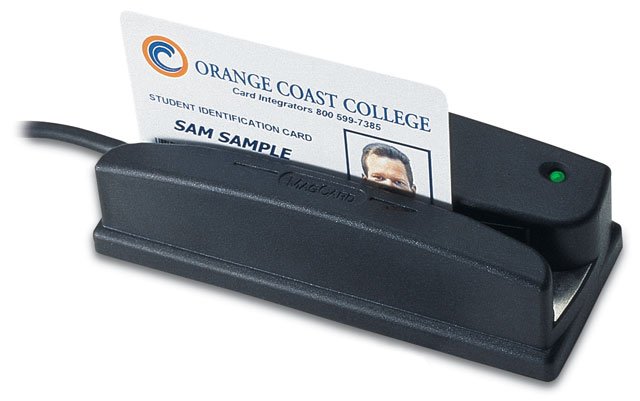

ID Tech Omni Credit Card Reader Model Overview
The ID Tech Heavy Duty Omni magnetic stripe reader. In addition to rugged housing, the Omni has a metal base with tapped holes and rubber feet, and can be Velcro mounted. Multi-colored LED (not on TTL). The cable can exit at the end, side or straight down. Options include TTL, RS-232, Keyboard wedge (AT/XT, PS/2, or Mac), Weigand or USB interface. If you need to read barcodes, please see the Omni Barcode Reader. If you need to read both barcodes and magnetic stripes, please see the Omni Barcode and Stripe Reader.
ID Tech WCR3227-533 Credit Card Reader Overview
Omni WCR32 Magnetic Stripe Reader reader is originally designed for the demanding Access Control and Time & Attendance markets. Its die cast metal base, stainless steel wear plate, and impact-resistant housing make Omni ideal for the growing market of self service and un attended applications.
Technical Information
Interfaces/Ports
Serial:
Yes
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Product Color:
Black
Height:
1.4"
Width:
2.1"
Length:
5"
Weight (Approximate):
1.40 lb
Item Numbers
UNSPSC:
43211702
Questions? Get help from
a POS Expert!
a POS Expert!
The ID Tech WCR3227-533 Credit Card Reader is also known as
IDT-WCR3227-533
or WCR3227533.
