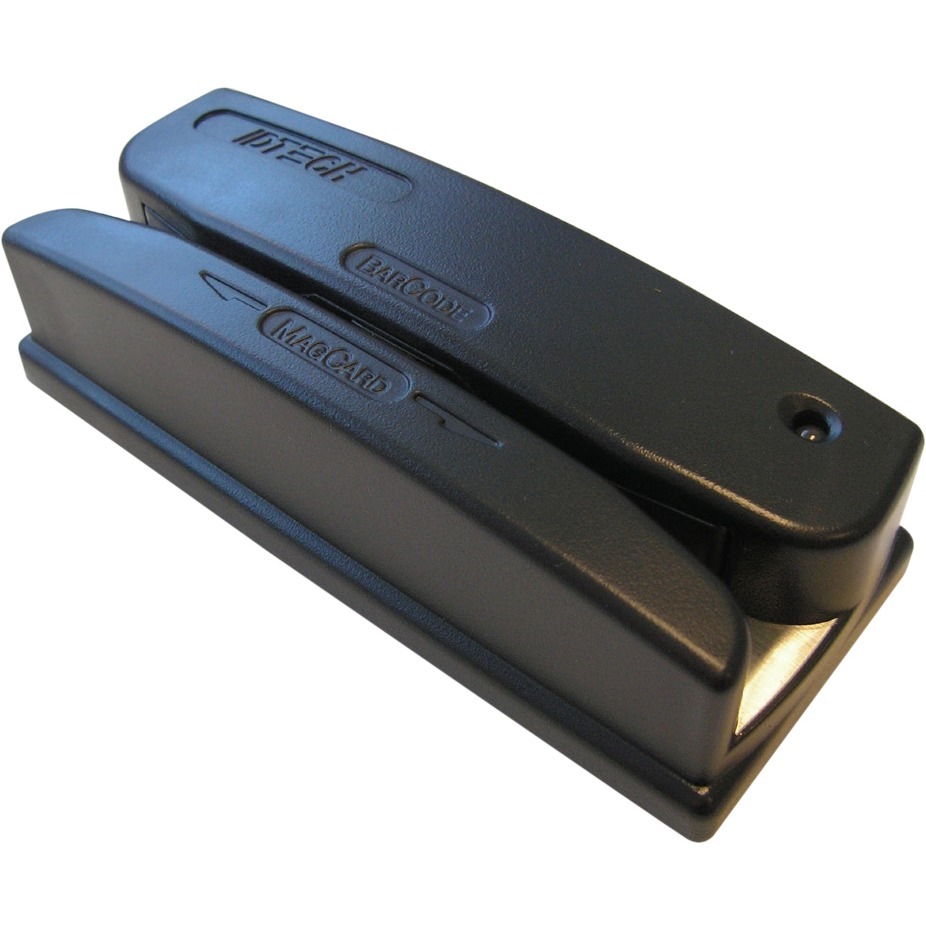

The OMNI Heavy Duty Slot Reader is a versatile and robust solution for scanning barcodes and magnetic stripes. With the capability to read up to three tracks of information in either direction, it ensures reliable performance in high-demand applications such as access control or self-service kiosks. Designed with a durable die-cast metal base and impact-resistant housing, this reader withstands the rigors of continuous use. Whether in harsh environments or regular settings, the Omni reader offers various environmental protections, making it a trusted choice across multiple industries.
Key Features
Multiple Interfaces: TTL, RS232, USB/KB, USB/RS232, and Wiegand.
Dual-Sided MagStripe Head: Available for versatile reading options.
Superior Readability: Effectively reads jittered, scratched, and worn cards.
Weatherproof Design: Sealed and extended temperature capabilities available.
Extended Lifecycle: Designed for a minimum of 1,000,000 passes.
Visual Indicators: Includes a beeper and LED to signify successful reads.
Customizable Data Output: Format can be programmed to meet terminal specifications.
Specifications
Power Requirements: Bar Code: +5 VDC +/-10%, 35mA Max; MagStripe: +5 VDC +/-10%, 30mA Max.
Operating Temperature: 32°F to 131°F (0°C to 55°C).
Storage Temperature: -31°F to 158°F (-35°C to 70°C).
Humidity: Maximum 95% non-condensing, dry storage.
Operating Life: 1,000 cycles minimum.
Dimensions: 5 inches (L) x 2.05 inches (W) x 1.38 inches (H).
Weight: 1.4 lbs (including power pack).
Cable Length: 6-foot straight cable.
Media Formats: UPC-A, UPC-E, EAN-8, EAN-13, Code 39, and others.
Media Thickness: Bar Code: 0.005 to 0.050 inches; MagStripe: 0.015 to 0.050 inches.
ID Tech WCR3227-512U Credit Card Reader Overview

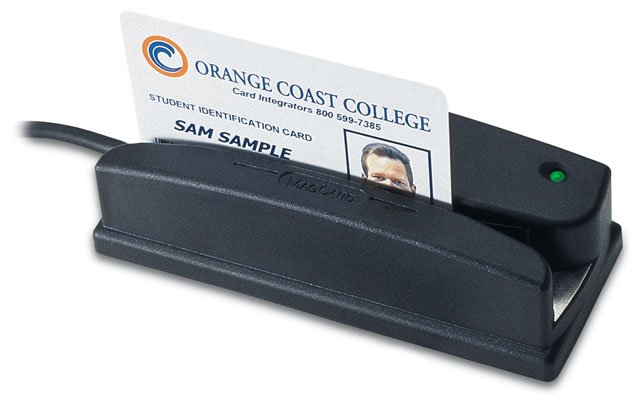

The Omni 3227 Magnetic Stripe Reader is originally designed for the demanding Access Control and Time & Attendance markets. Its die cast metal base, stainless steel wear plate, and impact-resistant housing make Omni ideal for the growing market of self-service and un-attended applications. The Omni 3227 Magnetic Stripe Reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application communication requirements.
The Zebra DS3678-ER is a 1D/2D imager that reliably scans both one-dimensional and two-dimensional barcodes with extended range capability. This makes it ideal for warehouse and logistics operations where you need flexibility to read various barcode formats across near and far distances.
Is the DS3678-ER suitable for cold storage and freezer environments?
Yes, the DS3678-ER is specifically built from the ground up to handle extreme cold conditions. It features unique plastics, cables, and components designed to function reliably in freezing temperatures without degradation, making it ideal for freezer operations and outdoor yards.
What connectivity options does the DS3678-ER offer?
The DS3678-ER is a cordless wireless scanner that connects seamlessly to your network infrastructure. Zebra's Network Connect for Automation delivers direct integration with industrial Ethernet networks without requiring third-party conversion equipment, simplifying deployment and management.
How durable is the Zebra DS3678-ER for rugged warehouse environments?
The DS3678-ER features an ultra-rugged design with IP65 and IP67 ratings, making it practically indestructible for demanding warehouse and logistics applications. Its robust construction combined with a vibration motor ensures reliable performance even in harsh conditions.
Can the DS3678-ER be easily integrated into existing warehouse management systems?
Yes, the DS3678-ER is designed for simple and fast deployment and management across your operations. Its wireless connectivity and network integration capabilities make it straightforward to add to existing warehouse infrastructure without complex configuration requirements.
What makes the DS3678-ER different from standard barcode scanners?
The DS3678-ER combines extended range 1D/2D scanning capability with ultra-rugged construction specifically engineered for extreme environments like freezers and outdoor yards. Its unmatched durability, wireless performance, and seamless industrial network integration deliver unstoppable performance where standard scanners would fail. Contact us today to learn how we can equip your warehouse with this advanced scanning solution.
Questions? Get help from a POS Expert!
The ID Tech WCR3227-512U Credit Card Reader is also known as
IDT-WCR3227-512U
or WCR3227512U.
IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.
Full specifications (PDF)
