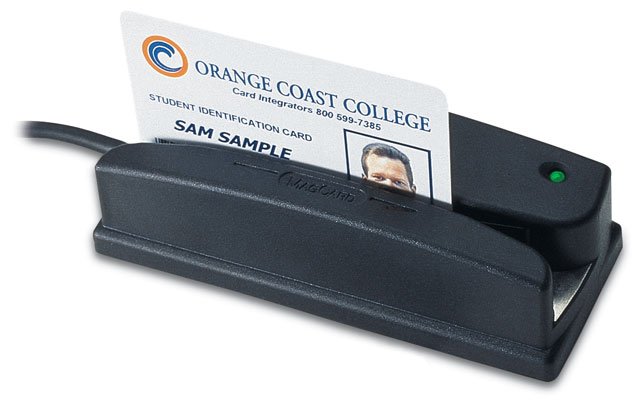

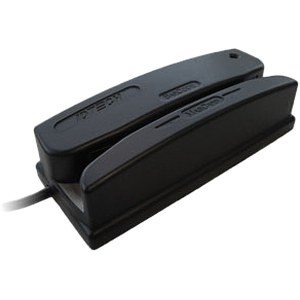

ID Tech WCR3227-512C Credit Card Reader

ID Tech Omni - ID TECH Omni WCR32 Magnetic Stripe Reader - Dual Track - 60 in/s - Serial - Black
$173.51
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
ID Tech Omni Credit Card Reader Model Overview
The ID Tech Heavy Duty Omni magnetic stripe reader. In addition to rugged housing, the Omni has a metal base with tapped holes and rubber feet, and can be Velcro mounted. Multi-colored LED (not on TTL). The cable can exit at the end, side or straight down. Options include TTL, RS-232, keyboard wedge (AT/XT, PS/2, or Mac), Weigand or USB interface.

If you need to read barcodes, please see the Omni Barcode Reader. If you need to read both barcodes and magnetic stripes, please see the Omni Barcode and Stripe Reader.

ID Tech WCR3227-512C Credit Card Reader Overview

The Omni reader is originally designed for the demanding Access Control and Time & Attendance markets. Its die cast metal base, stainless steel wear plate, and impact-resistant housing make Omni ideal for the growing market of self-service and un-attended applications. The Omni reads up to three tracks of magnetic information with a single swipe in either direction. Omni reads most bar code symbologies; both visible or infrared bar code data and/or MagStripe data, both in a single swipe. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application communication requirements.

Technical Information
Magnetic Stripe Track Configuration:
Dual Track
Magnetic Stripe Track Number:
  • Track 1
  • Track 2
Minimum Swipe Speed:
3 in/s
Maximum Swipe Speed:
60 in/s
Number of Swipes (Head Life):
1000000
Interfaces/Ports
Serial:
Yes
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Product Color:
Black
Height:
1.4"
Width:
2.1"
Length:
5"
Weight (Approximate):
1.40 lb
Miscellaneous
Additional Information:
  • Reads both magnetic stripe and barcode media
  • Reliable for over 1,000,000 card swipes
  • Superior reading of high jitter, scratched, and worn MagStripe cards
  • Metal base can be securely mounted with cable exits from side, end, or bottom
  • Weatherproof, sealed or extended temperature versions are available
  • Dual sided MagStripe head versions option
  • Red or infrared bar code reader option
Certifications & Standards:
  • CE
  • FCC
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0078172964055
UPC: 078172964055
EAN: 0078172964055
UNSPSC: 43211702
Questions? Get help from
a POS Expert!

What is your POS application?

The ID Tech WCR3227-512C Credit Card Reader is also known as IDT-WCR3227-512C or WCR3227512C.
