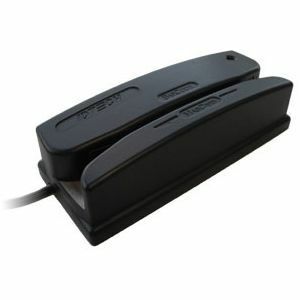

ID Tech WCR3207-700S Barcode Card Reader

ID Tech Omni - ID TECH Omni WCR32 Magnetic Stripe Reader - 60 in/s - TTL - Black
$100.14
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
ID Tech Omni Barcode Card Reader Model Overview
The ID Tech Heavy Duty Omni Barcode Reader. In addition to rugged housing, the Omni Barcode Reader has a metal base with tapped holes and rubber feet, and can be Velcro mounted. Multi-colored LED (not on TTL). The cable can exit at the end, side or straight down. Options include visible red or infrared barcode scanning; as well as TTL, RS-232, keyboard wedge (AT/XT, PS/2, or Mac), Weigand or USB interface options.
ID Tech WCR3207-700S Barcode Card Reader Overview

The Omni reader is originally designed for the demanding Access Control and Time & Attendance markets. Its die cast metal base, stainless steel wear plate, and impact-resistant housing make Omni ideal for the growing market of self-service and un-attended applications. The Omni reads up to three tracks of magnetic information with a single swipe in either direction. Omni reads most bar code symbologies; both visible or infrared bar code data and/or MagStripe data, both in a single swipe. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application communication requirements.

Technical Information
Minimum Swipe Speed:
3 in/s
Maximum Swipe Speed:
60 in/s
Number of Swipes (Head Life):
1000000
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Product Color:
Black
Height:
1.4"
Width:
2.1"
Length:
5"
Weight (Approximate):
1.40 lb
Miscellaneous
Additional Information:
  • Reads both magnetic stripe and barcode media
  • Reliable for over 1,000,000 card swipes
  • Superior reading of high jitter, scratched, and worn MagStripe cards
  • Metal base can be securely mounted with cable exits from side, end, or bottom
  • Weatherproof, sealed or extended temperature versions are available
  • Dual sided MagStripe head versions option
  • Red or infrared bar code reader option
Item Numbers
GTIN: 0039517578306
UPC: 039517578306
EAN: 0039517578306
UNSPSC: 43211702
Questions? Get help from
an ID Expert!

How many IDs will you
print per year?

The ID Tech WCR3207-700S Barcode Card Reader is also known as IDT-WCR3207700S or WCR3207700S.
