ID Tech WCR3207-700DS Credit Card Reader

Part Number: WCR3207-700DS

Model: Omni

$118.08

In Stock

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Description:

Undecoded, 5-pin connector, Infrared

Explore all ID Tech Omni Credit Card Readers

Add to Quote

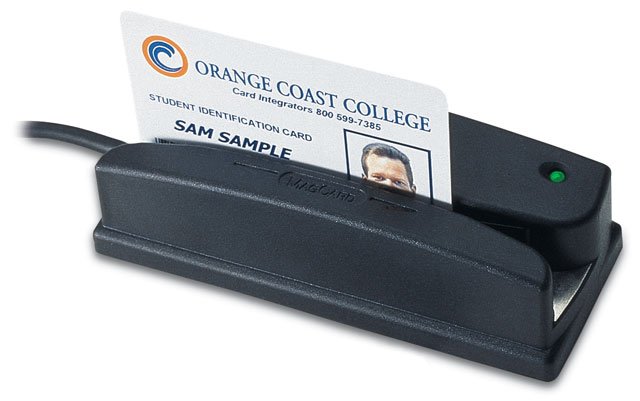

ID Tech WCR3207-700DS Credit Card Reader

Overview

Full specifications (PDF)

ID Tech Omni Credit Card Reader Model Overview

The OMNI Heavy Duty Slot Reader is a versatile and robust solution for scanning barcodes and magnetic stripes. With the capability to read up to three tracks of information in either direction, it ensures reliable performance in high-demand applications such as access control or self-service kiosks. Designed with a durable die-cast metal base and impact-resistant housing, this reader withstands the rigors of continuous use. Whether in harsh environments or regular settings, the Omni reader offers various environmental protections, making it a trusted choice across multiple industries.

Key Features

Multiple Interfaces: TTL, RS232, USB/KB, USB/RS232, and Wiegand.
Dual-Sided MagStripe Head: Available for versatile reading options.
Superior Readability: Effectively reads jittered, scratched, and worn cards.
Weatherproof Design: Sealed and extended temperature capabilities available.
Extended Lifecycle: Designed for a minimum of 1,000,000 passes.
Visual Indicators: Includes a beeper and LED to signify successful reads.
Customizable Data Output: Format can be programmed to meet terminal specifications.

Specifications

Power Requirements: Bar Code: +5 VDC +/-10%, 35mA Max; MagStripe: +5 VDC +/-10%, 30mA Max.
Operating Temperature: 32°F to 131°F (0°C to 55°C).
Storage Temperature: -31°F to 158°F (-35°C to 70°C).
Humidity: Maximum 95% non-condensing, dry storage.
Operating Life: 1,000 cycles minimum.
Dimensions: 5 inches (L) x 2.05 inches (W) x 1.38 inches (H).
Weight: 1.4 lbs (including power pack).
Cable Length: 6-foot straight cable.
Media Formats: UPC-A, UPC-E, EAN-8, EAN-13, Code 39, and others.
Media Thickness: Bar Code: 0.005 to 0.050 inches; MagStripe: 0.015 to 0.050 inches.
