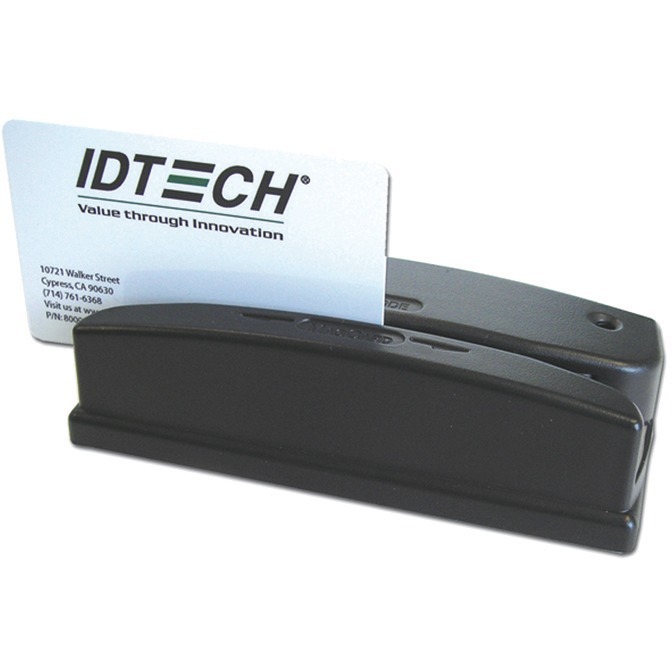

ID Tech WCR3207-533 Credit Card Swiper

ID Tech Omni - ID TECH Omni 3207 Magnetic Stripe Reader - Triple Track - 60 in/s
  • TTL, KB, RS232, USB-KB, USB-RS232 and Wiegand interfaces
  • Reads most barcodes symbologies and/or MagStripe Data
  • Superior reading of jitter, scratched, and worn MagStripe Cards
  • Dual sided MagStripe head versions available
  • Die-cast metal plate allows flexible mounting options
  • Rugged weatherproof design with sealed or extended temperature options
  • Reliable for a minimum of 1,000,000 passes
  • Signifies successful reads with a beeper and LED indicator
  • Data output can be programmed into needed format
  • Reads up to 3 tracks of information
Read More
$73.98
Global Supply Chain Constraints; Order now to be first when stock is available

Full specifications (PDF)

The Omni reads up to three tracks of information with a single swipe in either direction.

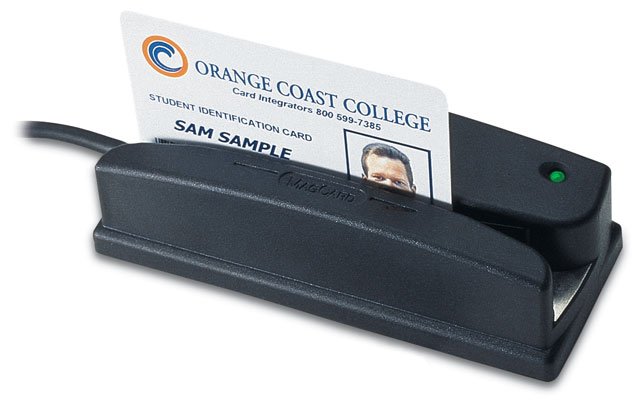

The ID Tech Heavy Duty Omni magnetic stripe reader. In addition to rugged housing, the Omni has a metal base with tapped holes and rubber feet, and can be Velcro mounted. Multi-colored LED (not on TTL). The cable can exit at the end, side or straight down. Options include TTL, RS-232, Keyboard wedge (AT/XT, PS/2, or Mac), Weigand or USB interface.

If you need to read barcodes, please see the Omni Barcode Reader. If you need to read both barcodes and magnetic stripes, please see the Omni Barcode and Stripe Reader.

ID Tech WCR3207-533 Overview

The Omni 3207 Magnetic Stripe Reader is originally designed for the demanding Access Control and Time & Attendance markets. Its die cast metal base, stainless steel wear plate, and impact-resistant housing make Omni ideal for the growing market of self-service and un-attended applications. The Omni 3207 Magnetic Stripe Reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application communication requirements.

Protect Your Product

Full specifications (PDF)

Technical Information
Number of Read Heads:
2
Magnetic Stripe Track Configuration:
Triple Track
Magnetic Stripe Track Number:
  • Track 1
  • Track 2
  • Track 3
Minimum Swipe Speed:
3 in/s
Maximum Swipe Speed:
60 in/s
Magnetic Head Life:
1000000 Swipe
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Height:
1.4"
Width:
2"
Length:
5"
Weight (Approximate):
1.40 lb
Miscellaneous
Additional Information:
  • Reads most bar codes symbologies and/or MagStripe Data
  • Signifies successful reads with a beeper and LED indicator
  • Die-cast metal plate allows flexible mounting options
  • Threaded inserts for easy and flexible mounting
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211702


The ID Tech WCR3207-533 is also known as IDTech IDT-WCR3207-533 or WCR3207533 .
