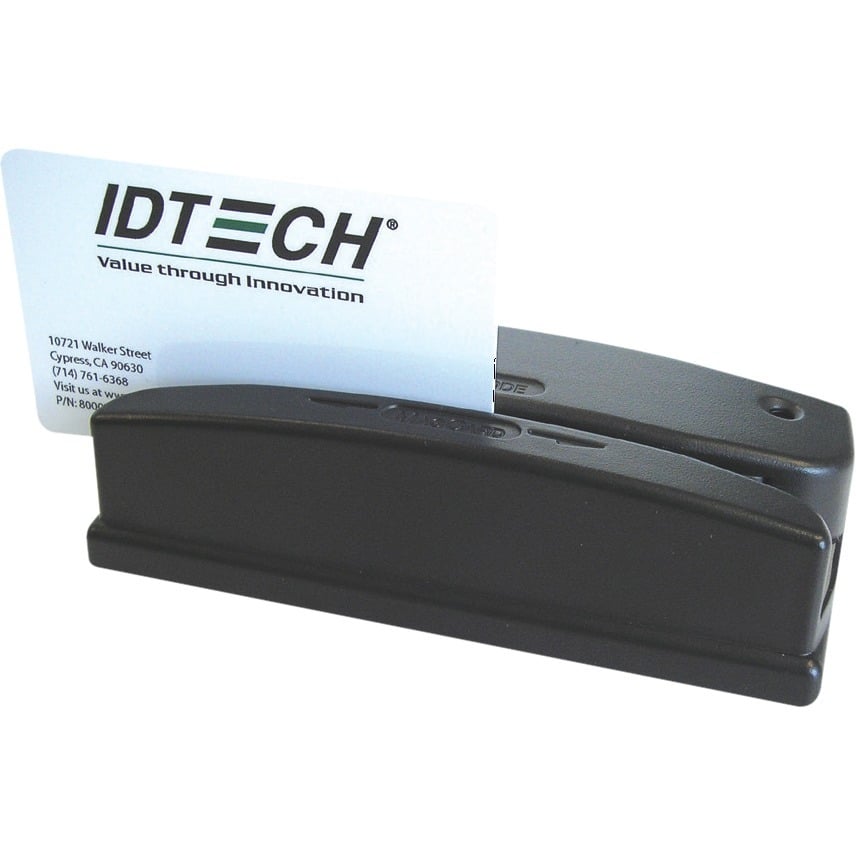

ID Tech WCR-354733 Credit Card Reader

ID Tech - ID TECH Omni Duo Magnetic Stripe Reader - 60 in/s - USB, Keyboard Wedge

TTL, KB, RS232, USB-KB, USB-RS232 and Wiegand interfaces
Reads most barcodes symbologies and/or MagStripe Data
Superior reading of jitter, scratched, and worn MagStripe Cards
Dual sided MagStripe head versions available
Die-cast metal plate allows flexible mounting options
Rugged weatherproof design with sealed or extended temperature options
Reliable for a minimum of 1,000,000 passes
Signifies successful reads with a beeper and LED indicator
Data output can be programmed into needed format
Reads up to 3 tracks of information

Need a different version? See all ID Tech Parts Accessories

$217.00

Chat Now for Qty Discount

Add to Quote

Overview

ID Tech Parts Accessory Model Overview

Products and parts from IDTech.

ID Tech WCR-354733 Credit Card Reader Overview

Convenience and Durability
A unique dual-head design reduces the confusion at the point of swipe by accepting cards being swiped regardless of the magnetic stripe orientation. Two magnetic heads provide convenience to the user and ensures the data is captured on the first swipe. The Omni™ Duo delivers exceptional performance in a rugged, weatherproof housing.

Stands Up to Heavy Use
The Omni™ Duo reader is designed for demanding applications such as self-service kiosks. Its die-cast metal base, stainless steel wearplate, and impact-resistant housing make it ideal for stand-alone high-volume applications. Its metal base can be securely mounted with screws, and cable exits are available at the side, end, or bottom of the unit. Weatherproof and extended temperature versions are available for use in harsh environments.

Configurability and Reliability
The Omni™ Duo is programmable so that the data format and intelligent interface output can be programmed and configured to match application and communication requirements. With ID TECH's Windows-based MagSwipe Configuration Utility, data output format can be customized. The Omni™ Duo design ensures over one million card cycles and is one of the industries most reliable card readers.

Detailed Specs

Technical Information

Minimum Swipe Speed:

3 in/s

Maximum Swipe Speed:

60 in/s

Number of Swipes (Head Life):

1000000

Magnetic Stripe Format:

AAMVA
ISO 7811

Interfaces/Ports

Keyboard Wedge:

Yes

USB:

Yes

Power Description

Input Voltage:

5 V DC

Physical Characteristics

Height:

1.4"

Width:

2.1"

Length:

Weight (Approximate):

1.40 lb

Miscellaneous

Additional Information:

Electronic-MTBF: 300,000 POH based on Bellcore std.
Media Thickness: 0.015 inches (0.127mm) to 0.038 inches (1.14mm)
Media Formats: ISO 7811, AAMVA, and other F2F formats
Slot Width: 0.05 (1.37mm)

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43211702

Reviews

Q&A

Questions? Get help from
a POS Expert!

The ID Tech WCR-354733 Credit Card Reader is also known as WCR-354733
