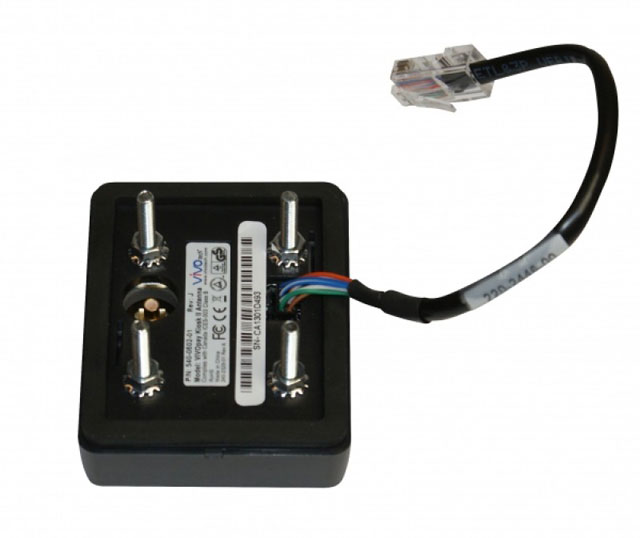

ID Tech VIVO-540-0602-01 Credit Card Reader

The ViVOpay Kiosk II is a cutting-edge contactless payment solution designed for seamless integration into a variety of applications. With its compact controller and RFID antenna modules, this device offers the flexibility needed for manufacturers to incorporate contactless payment functionality into their host systems easily. Ideal for retail drive-thru, ticketing, and transit systems, the ViVOpay Kiosk II ensures quick and secure transactions while supporting various contactless payment options such as Apple Pay and Android Pay. Its robust ARM processor and remote firmware download capability future-proof your investment, allowing for easy updates and scalability.

Key Features:

• Contactless Compatibility: Supports ISO/IEC 14443 Type A & B, MiFare®, and NFC standards.
• Flexible Integration: Separate controller and RFID antenna modules for easy installation in customer-facing locations.
• Fast Transactions: Speeds up purchasing, enhancing customer experience in vending and parking systems.
• Remote Updates: Facilitates firmware updates without requiring additional hardware.
• Environmentally Resilient: Weather-proofed UV-rated plastic enclosure ensures durability in various conditions.

Specifications:

• Processor: ARM Processor
• Input Power: 7.5-36 VDC
• Mobile Payments Supported: Android Pay, Apple Pay, others
• Connectivity: RS-232, USB
• Operating Temperature: -13°F to +158°F (-25°C to +70°C)
• Storage Temperature: -40°F to +185°F (-40°C to +85°C)
• Operating Humidity: 10% to 90% non-condensing
• Physical Dimensions (Square Bezel Antenna):
  • Height: 75 mm (2.95 inches)
  • Length: 60 mm (2.36 inches)
  • Width: 16.8 mm (0.66 inches)
  • Weight: 0.30 lb.
• Physical Dimensions (Angle Bezel Antenna):
  • Height: 96.2 mm (3.787 inches)
  • Length: 82.3 mm (3.24 inches)
  • Width: 16.8 mm (0.66 inches)
  • Weight: 0.35 lb.
• Physical Dimensions (Controller Module):
  • Height: 105 mm (4.13 inches)
  • Length: 76.2 mm (3.00 inches)
  • Width: 22.5 mm (0.88 inches)
  • Weight: 0.15 lb.
