SPT3375331NNONOC Credit Card Reader

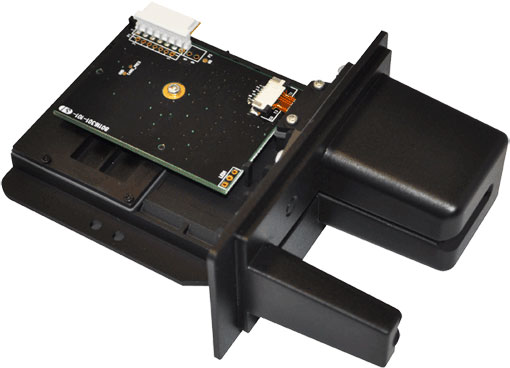

The Spectrum Air™ Dual Headed Magnetic Stripe Insert Reader is engineered for superior durability and reliability in outdoor environments, boasting an IP 65 rating that protects against water and contaminants. Its innovative sealed chassis design ensures a long lifespan, while embedded flex circuit technology minimizes leak risks. Utilizing robust ID TECH encryption standards, including TDES and AES, the Spectrum Air guarantees data security during transactions. Perfect for gas pumps, vending machines, and outdoor kiosks, this reader supports card data from multiple angles, offering seamless integration into your systems.
Key Features:

• Dual Headed Magnetic Stripe Insert Reader
• Reads up to three tracks of card data
• IP 65 Rated
• Supports TDES or AES encryption
• Ideal for gas pumps, vending, and outdoor kiosk applications
• 1 year warranty

Specifications:

• Electrical
• Power Requirements (RS-232): +5 VDC/55mA
• Power Requirements (USB): +5 VDC/55mA
• Operating Current: 55 mA maximum for three tracks
• Interfaces: RS232 Serial, USB-CDC, USB-HID, USB-HID-KB, Keyboard Wedge
• Environmental
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 10% to 90% non-condensing
• Reliability
• Magnetic Head Life: 1,000,000 cycles minimum
• Chassis and Bezel: 1,000 card cycles minimum
• Warranty: One year, parts and labor
• Mechanical
• Physical Dimensions: 120mm x 92mm x 48mm (L x W x H)
• General Construction: PC UL 94V-0 plastic chassis
• Media Thickness: 0.76mm
• Media Formats: ISO 7810 ID-1 card, ISO 7811
• Color: Black
• Seal Rating: IP 65
