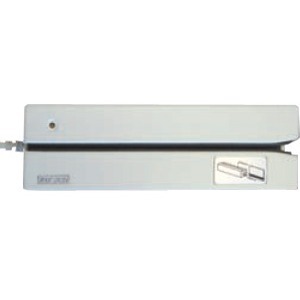

ID Tech EzWriter Credit Card Reader Model Overview
The ID TECH EzWriter is a state-of-the-art magnetic stripe reader-writer designed for precision card encoding and issuing operations. With the capability to read, write, and verify all three tracks of MagStripe data in one smooth swipe, it guarantees superior performance with encoding quality that exceeds ISO 7811 standards. The EzWriter's low force design enhances usability, ensuring over 1,000,000 card swipes during its lifespan. Coupled with the user-friendly Workshop™ software, setting up the EzWriter is efficient and straightforward, making it the perfect choice for businesses requiring reliable card processing solutions.
Key Features
Precision Encoding: Reads and writes all three tracks of MagStripe cards in a single swipe.
Durability: Designed for a minimum of 1,000 operations with a robust die-cast housing.
Software Simplicity: Workshop™ software guides users through reading and writing processes effortlessly.
Coercivity Configuration: Easily switch between high and low coercivity settings via software.
Specifications
Electrical:
Operating Voltage: 24VDC +/- 10%
Power Consumption: <2AMPS
MTBF: 160,000 Power On Hours
Encoding Density: 75 or 210 BPI
Communication: RS232, USB-RS232
Environmental:
Operating Temperature: 32°F to 122°F (0°C to 50°C)
Storage Temperature: 14°F to 140°F (-10°C to 60°C)
Mechanical:
Swipe Speed (Reading): 5 to 55 inches per second
Swipe Speed (Writing): 5 to 35 inches per second
Dimensions: 2.6” x 2.5” x 8.0” (HxWxL)
Weight: 3 lb (1.36 kg)
Housing Material: Die cast zinc
ID Tech IDWA-336333 Credit Card Reader Overview
Precision Writing on MagStripe Cards ID TECH EzWriterTM encodes, reads, & verifies three tracks of MagStripe data in a single swipe. A high resolution tachometer precisely locates encoding; the encoding quality exceeds ISO 7811 standards for new cards. Data density is selectable to 75 or 210 BPI for any track. High or low coercivity is software selectable. An LED provides operation status.
Heavy Duty and Long Life Full-length guides & a deep card slot ensure accurate card alignment and registration. The low force design of EzWriter ensures a smooth and easy card swipe which provides an operating life for more than 1,000,000 card swipes. The die cast housing gives durability and maximum stability during reading and writing operations.
WorkShop TM PC Software WorkshopTM is ID TECH's Windows based PC software utility. It includes all standard and many custom options for reading & writing to a MagStripe card. A single window shows the reading & writing format selections for each track. Default selections are available for simple & correct set-ups when encoding ISO, AAMVA or other formats. Database and file operations are supported. Convenient features such as track erasing, card data comparisons, and sequential data writing are included. The EzWriter communicates via an RS-232 or a USBRS232 serial COM port interface.
Features and Benefits
Reads and writes MagStripe cards, tickets, badges, and passbooks in a single swipe
Reads & writes up to 3 tracks of information and any combination of 210 or 75 bpi densities
EzWriter provides 1 million read & write operations minimum for heads, tachometer, & electronics
WorkshopTM software is easy to use & guides the user quickly through the reading & writing processes
Easily configures the unit to Hi or Low coercivity by changing a software setting only
Die cast housing provides durability, stability and maximum life
The ID Tech IDWA-336333 Credit Card Reader is also known as
IDT-IDWA336333
or IDWA336333.
