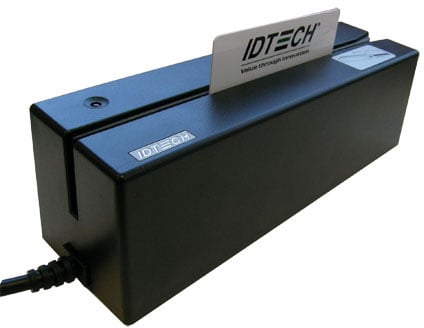

ID Tech IDWA-336133B Credit Card Reader

Part Number: IDWA-336133B

Model: EconoWriter

$442.42

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Magnetic Stripe Coercivity

Low Coercivity (LoCo)

Magnetic Stripe Track Configuration

Triple Track

Magnetic Stripe Track Number

Track 1Track 2Track 3

Minimum Swipe Speed

5 in/s

Product Description:

ID TECH EconoWriter IDWA Magnetic Stripe Reader - Low Coercivity (LoCo) - Triple Track - 55 in/s - USB, Serial - Black

Explore all EconoWriter Credit Card Readers

Add to Quote

Overview

Full specifications (PDF)

EconoWriter Credit Card Reader Model Overview

EconoWriter encodes and reads, ISO, AAMVA, User Custom, and Raw-Data card formats. It writes (encodes data), reads the data, and then verifies the encoding for up to three tracks in a single cards swipe. EconoWriter writes/reads only low coercivity cards and comes with a utility software called Workshop, a Windows software application that makes the reading and writing process quick, easy, and verifiable. Workshop is a PC application that operates in Windows XP or 2000. The deep card slot with low head force design ensures smooth and easy card swipes. The card motion tachometer has the highest resolution in the industry. These mechanical features are not available in other products; all of them provide stability, reliability, and the accuracy required for ISO/IEC 7811 standards in the card writing process.

ID Tech IDWA-336133B Credit Card Reader Overview

EconoWrtiter encodes and reads, ISO, AAMVA, User Custom, and Raw-Data card formats. It writes (encodes data), reads the data, and then verifies the encoding for up to three tracks in a single cards swipe. Econowriter writes/reads only low coercivity cards and comes with a utility software called Workshop, a Windows software application that makes the reading and writing process quick, easy, and verifiable. Workshop is a PC application that operates in Windows XP or 2000. The deep card slot with low head force design ensures smooth and easy card swipes. The card motion tachometer has the highest resolution in the industry. These mechanical features are not available in other products; all of them provide stability, reliability, and the accuracy required for ISO/IEC 7811 standards in the card writing process.

Detailed Specs

Full specifications (PDF)

Technical Information

Magnetic Stripe Coercivity:

Low Coercivity (LoCo)

Magnetic Stripe Track Configuration:

Triple Track

Magnetic Stripe Track Number:

Track 1
Track 2
Track 3

Minimum Swipe Speed:

5 in/s

Maximum Swipe Speed:

55 in/s

Number of Swipes (Head Life):

1000000

Interfaces/Ports

Serial:

Yes

USB:

Yes

Reliability

MTBF:

160000 Hour

Power Description

Input Voltage:

24 V DC

Physical Characteristics

Product Color:

Black

Height:

2.6"

Width:

2.5"

Length:

Weight (Approximate):

1.25 lb

Miscellaneous

Additional Information:

Reads and Writes MagStripe Cards.
Write Speed of 5 to 35 Inches Per Second
LED Provides Operational Status.
Writes Any Track Combinations of 210 and or 75 bpi Data Density.

Item Numbers

UNSPSC: 43211702
