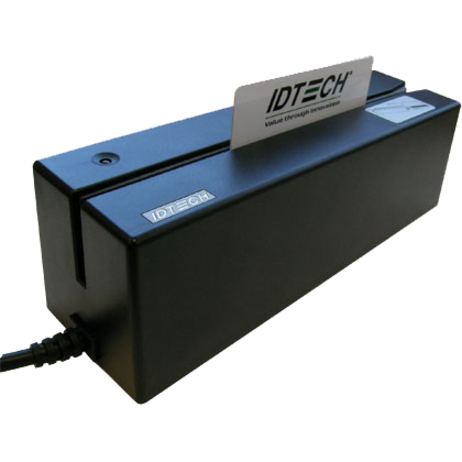

ID Tech EzWriter Credit Card Reader Model Overview
The ID TECH EzWriter is a state-of-the-art magnetic stripe reader-writer designed for precision card encoding and issuing operations. With the capability to read, write, and verify all three tracks of MagStripe data in one smooth swipe, it guarantees superior performance with encoding quality that exceeds ISO 7811 standards. The EzWriter's low force design enhances usability, ensuring over 1,000,000 card swipes during its lifespan. Coupled with the user-friendly Workshop™ software, setting up the EzWriter is efficient and straightforward, making it the perfect choice for businesses requiring reliable card processing solutions.
Key Features
Precision Encoding: Reads and writes all three tracks of MagStripe cards in a single swipe.
Durability: Designed for a minimum of 1,000 operations with a robust die-cast housing.
Software Simplicity: Workshop™ software guides users through reading and writing processes effortlessly.
Coercivity Configuration: Easily switch between high and low coercivity settings via software.
Specifications
Electrical:
Operating Voltage: 24VDC +/- 10%
Power Consumption: <2AMPS
MTBF: 160,000 Power On Hours
Encoding Density: 75 or 210 BPI
Communication: RS232, USB-RS232
Environmental:
Operating Temperature: 32°F to 122°F (0°C to 50°C)
Storage Temperature: 14°F to 140°F (-10°C to 60°C)
Mechanical:
Swipe Speed (Reading): 5 to 55 inches per second
Swipe Speed (Writing): 5 to 35 inches per second
Dimensions: 2.6” x 2.5” x 8.0” (HxWxL)
Weight: 3 lb (1.36 kg)
Housing Material: Die cast zinc
IDWA-336133 Credit Card Reader Overview
EconoWrtiter encodes and reads, ISO, AAMVA, User Custom, and Raw-Data card formats. It writes (encodes data), reads the data, and then verifies the encoding for up to three tracks in a single cards swipe. Econowriter writes/reads only low coercivity cards and comes with a utility software called Workshop, a Windows software application that makes the reading and writing process quick, easy, and verifiable. Workshop is a PC application that operates in Windows XP or 2000. The deep card slot with low head force design ensures smooth and easy card swipes. The card motion tachometer has the highest resolution in the industry. These mechanical features are not available in other products; all of them provide stability, reliability, and the accuracy required for ISO/IEC 7811 standards in the card writing process.
The IDWA-336133 Credit Card Reader is also known as
IDT-IDWA336133
IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.
Full specifications (PDF)
