ID Tech IDWA-332133 Credit Card Reader

ID Tech IDWA-332133B Credit Card Reader A newer version of this item is available.
It is replaced by the ID Tech IDWA-332133B Credit Card Reader.
ID Tech EzWriter - EzWriter Card Reader-Writer, EzWriter, 3-Track, RS-232, LOCO and Plastic Housing - High Fraud item must call to order.
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

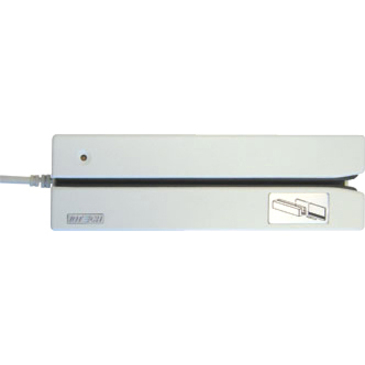

ID Tech EzWriter Credit Card Reader Model Overview
The IDTech EzWriter encodes, reads, & verifies three tracks of magstripe data in a single swipe. A high resolution tachometer precisely locates encoding; the encoding quality exceeds ISO 7811 standards for new cards. Data density is selectable to 75 or 210 BPI for any track. High or low coercivity is software selectable. An LED provides operation status. Full-length guides & a deep card slot ensure accurate card alignment and registration. The low force design of EzWriter ensures a smooth and easy card swipe which provides an operating life for more than 1,000,000 card swipes. The die cast housing gives durability and maximum stability during reading and writing operations.
ID Tech IDWA-332133 Credit Card Reader Overview

EzWriter encodes and reads ISO, AAMVA, User Custom, and Raw-Data card formats. It writes (encodes data), reads the data, and then verifies the encoding for up to three tracks in a single card swipe. EzWriter writes/reads both High-coercivity and Low-coercivity cards. EzWriter comes with Workshop™, a Windows software application that makes the reading and writing process quick, easy, and verifiable. Workshop is a PC application that operates in Windows XP or 2000. The operation and design are unique. The die cast housing and the deep card slot with low head force design ensures smooth and easy card swipes. The card motion tachometer has the highest resolution in the industry. These mechanical features are not available in other products; all of them provide stability, reliability, and the accuracy required for ISO/IEC 7811 standards in the card writing process.

Technical Information
Magnetic Stripe Coercivity:
Low Coercivity (LoCo)
Magnetic Stripe Track Configuration:
Triple Track
Magnetic Stripe Track Number:
  • Track 1
  • Track 2
  • Track 3
Minimum Swipe Speed:
5 in/s
Maximum Swipe Speed:
55 in/s
Magnetic Head Life:
1000000 Swipe
Interfaces/Ports
Serial:
Yes
Reliability
MTBF:
160000 Hour
Power Description
Input Voltage:
24 V DC
Physical Characteristics
Color:
Beige
Height:
2.6"
Width:
2.5"
Length:
8"
Weight (Approximate):
3 lb
Miscellaneous
Additional Information:
  • Reads and Writes Magnetic Stripe Media Including Cards, Tickets, Badges and Passbooks.
  • Writes any track combinations of 210 and/or 75 bpi data density.
  • Can Write Characters at Variable Bit Lengths.
  • Die Cast Housing for Stability & Operating Life.
  • True 420 Clocks Per Inch Tachometer.
  • Workshop Software is Easy; It Guides The User Through Set-Up of Standard and Custom Writing, & Reading Processes.
  • LED Provides Operational Status.
Item Numbers
UNSPSC: 43211702
Questions? Get help from
a POS Expert!

What is your POS application?

The ID Tech IDWA-332133 Credit Card Reader is also known as IDT-IDWA332133 or IDWA332133.
