ID Tech IDWA-332112B Credit Card Reader

The ID Tech IDWA-332112B Credit Card Reader has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
ID Tech EzWriter - ID TECH EconoWriter IDWA Magnetic Stripe Reader - Low Coercivity (LoCo) - Dual Track - 55 in/s - Serial - Black
Discontinued Need Assistance?
Add to Quote

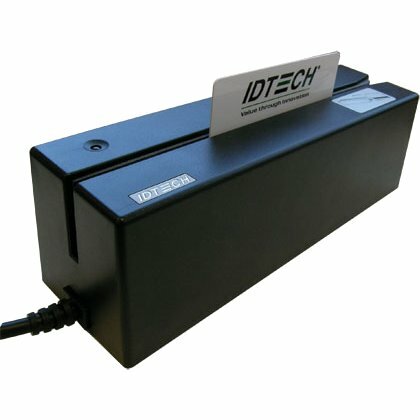

ID Tech EzWriter Credit Card Reader Model Overview
The IDTech EzWriter encodes, reads, & verifies three tracks of magstripe data in a single swipe. A high resolution tachometer precisely locates encoding; the encoding quality exceeds ISO 7811 standards for new cards. Data density is selectable to 75 or 210 BPI for any track. High or low coercivity is software selectable. An LED provides operation status. Full-length guides & a deep card slot ensure accurate card alignment and registration. The low force design of EzWriter ensures a smooth and easy card swipe which provides an operating life for more than 1,000,000 card swipes. The die cast housing gives durability and maximum stability during reading and writing operations.
ID Tech IDWA-332112B Credit Card Reader Overview

EconoWrtiter encodes and reads, ISO, AAMVA, User Custom, and Raw-Data card formats. It writes (encodes data), reads the data, and then verifies the encoding for up to three tracks in a single cards swipe. Econowriter writes/reads only low coercivity cards and comes with a utility software called Workshop, a Windows software application that makes the reading and writing process quick, easy, and verifiable. Workshop is a PC application that operates in Windows XP or 2000. The deep card slot with low head force design ensures smooth and easy card swipes. The card motion tachometer has the highest resolution in the industry. These mechanical features are not available in other products; all of them provide stability, reliability, and the accuracy required for ISO/IEC 7811 standards in the card writing process.

Technical Information
Magnetic Stripe Coercivity:
Low Coercivity (LoCo)
Magnetic Stripe Track Configuration:
Dual Track
Magnetic Stripe Track Number:
  • Track 1
  • Track 2
Minimum Swipe Speed:
5 in/s
Maximum Swipe Speed:
55 in/s
Magnetic Head Life:
1000000 Swipe
160000 Hour
Power Description
Input Voltage:
24 V DC
Physical Characteristics
Weight (Approximate):
1.25 lb
Additional Information:
  • Reads and Writes MagStripe Cards, Tickets, Badges, and Passbooks in a Single Swipe.
  • Reads and Writes Up to 3 Tracks of Information and Any Combination of 210 or 75 bpi Densities.
  • EconoWriter Provides 1 Million Read and Write Operations Minimum for Heads, Tachometer & Electronics.
  • Workshop Software is Easy To Use & Guides The User Quickly Through The Reading and Writing Processes.
  • Light Weight Black Plastic Housing.
  • LED Provides Operational Status.
  • Writes Any Track Combinations of 210 and or 75 bpi Data Density.
Item Numbers
UNSPSC: 43211702
Questions? Get help from
a POS Expert!

What is your POS application?

The ID Tech IDWA-332112B Credit Card Reader is also known as IDWA332112B
