IDT3331-12UB Credit Card Reader

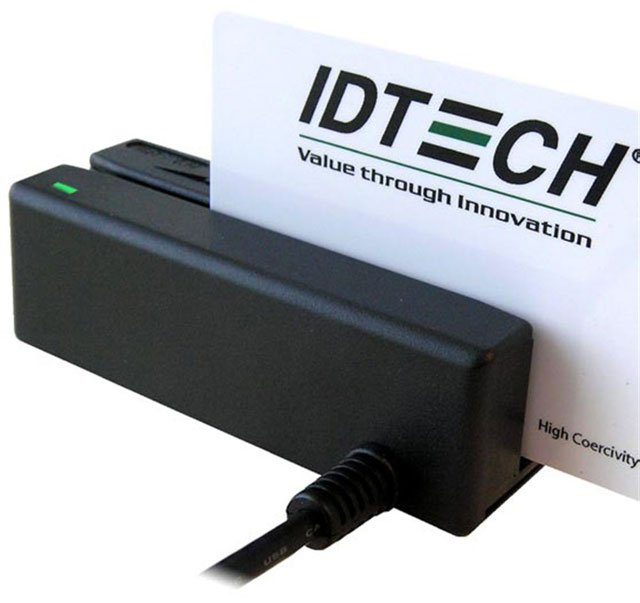

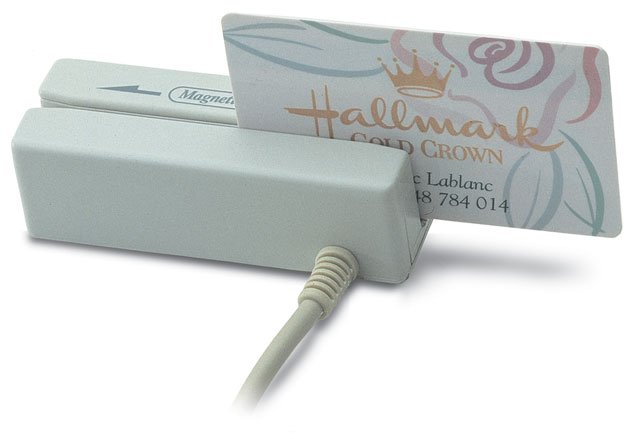

The MiniMag™ Compact Intelligent Magstripe Swipe Reader is designed for optimal performance in a space-saving format. Capable of reading up to 3 tracks of magnetic stripe card data in either direction, it enhances usability across various applications, including POS systems and loyalty programs. With innovative mounting options, the MiniMag easily adapts to your setup, ensuring a seamless integration. Its user-friendly software allows for customization, making it an ideal choice for businesses seeking efficiency combined with reliability.

Key features:

• Multiple Interfaces: Supports KB, RS232, USB-KB, USB-CDC, USB-HID, and RS232 Port-Powered connectivity.
• Programmable Functions: Customize output format with a Windows-based MagSwipe Configuration Utility.
• Exceptional Reliability: Reads up to 1,000,000 passes with a visual and audible indicator for successful reads.
• Flexible Mounting: Can be mounted in various orientations using threaded inserts or Velcro.
• Compact Design: With a size of 3.54 x 1.34 inches, perfect for limited spaces.

Specifications:

• Electrical:
• Power: 5 VDC +/-10%
• Current: 1mA per track (max)
• External Power Supply: 5 VDC/350mA (RS-232 only)
• Environmental:
• Operating Temperature: 32°F to 131°F (0°C to 55°C)
• Storage Temperature: -22°F to 158°F (-30°C to 70°C)
• Humidity: Maximum 95% non-condensing
• Mechanical:
• Dimensions: 3.54" x 1.34" x 1.10"
• Weight: Approximately 4.6 oz.
• Cable Length: 6-foot side exit (bottom exit available)
• Indicators:
• Tri-colored LED and beeper for read indication
