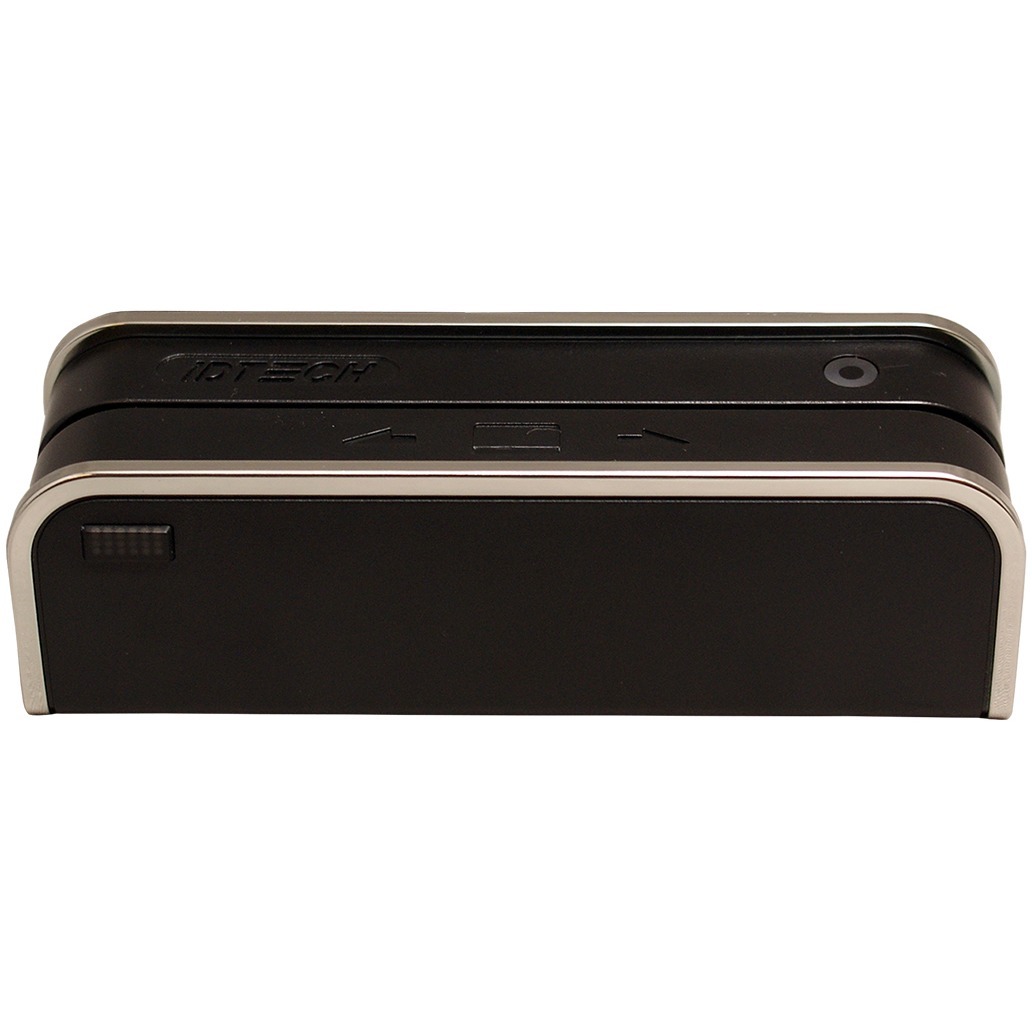

The SecuRED™ PCI SRED Magnetic Stripe Reader is a superior card reading solution that effortlessly merges robust security and user-friendly design. Certified to meet PCI SRED standards, it encrypts payment card data at the time of swiping. Designed for reliability and efficiency, it features bi-directional card reading and a clear confirmation display for enhanced user experience. With USB connectivity and a long operating life of 1,000,000 cycles, this device is indispensable for merchants seeking to maintain security while ensuring seamless transactions.
Key Features
PCI-PTS SRED Certified: Ensures data security compliance.
Multiple Track Reading: Reads up to 3 tracks of card information.
Simple Integration: Compatible with USB Keyboard and USB-HID interfaces.
Clear Confirmation Data: Displays cardholder's name and masked PAN.
Durable Construction: Endures at least 1,000 swipes.
Specifications
Electrical:
Power Requirements: +5 VDC +/- 10%
Interfaces: USB Keyboard, USB-HID
Card Speed: 5 to 65 ips
Environmental:
Operating Temperature: 32°F to 131°F
Storage Temperature: -22°F to 149°F
Humidity: Maximum 95% non-condensing
Reliability:
Operating Life: 1,000 cycles minimum
Warranty: One year, parts and labor
Mechanical:
Dimensions: 3.94" x 1.18" x 1.18"
Media Thickness: 0.025" to 0.035"
Cable Length: 6-foot cable
ID Tech IDSR-335133TEB Credit Card Reader Overview
PCI Certified Security SecuRED is a PCI SRED (Secure Reading Exchange of Data) Certified magnetic stripe card reader. This intelligent reader, not only encrypts payment card data as it swiped through the device, but also provides the physical security and tamper resistance needed to achieve PCI SRED standards. ID TECH's SecuRED allows customers the flexibility to choose a decryption party right for them and is needed for companies looking to certify a P2PE solution. When included within a P2PE certified solution, SecuRED, is a critical element leading to achieve merchant PCI scope reduction.
End to End Encryption DUKPT key management is featured within the SecuRED and TDES or AES encryption algorithms are used to ensure the card holder data is handled and protected to meet the demanding and latest requirements of the payment industry. The SecuRED outputs both encrypted data and masked data which provides for flexibility to the host application.
Easy to Integrate and Use While SecuRED is the most secure MSR solution available from ID TECH, it is very user friendly and reliable. It is available in USB HID and USB Keyboard emulation interfaces and SecuRED also features OPOS drivers. Beeper, LED and Bi-directional communication are all supported along with threaded insert on the reader base to allow for mounting accommodations. The SecuRED also features proven reliability known within ID TECH products and is has an operating life of at least 1,000,000 cycles.
The ID Tech IDSR-335133TEB Credit Card Reader is also known as
IDT-IDSR335133TEB
or IDSR335133TEB.
IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.
Full specifications (PDF)
