Encryption:
- DUKPT
- AES
- Triple DES
ID Tech IDSK2-535E Credit Card Reader
Part Number:
IDSK2-535E
Model:
Parts
ID Tech Parts Accessory Model Overview
Products and parts from IDTech.

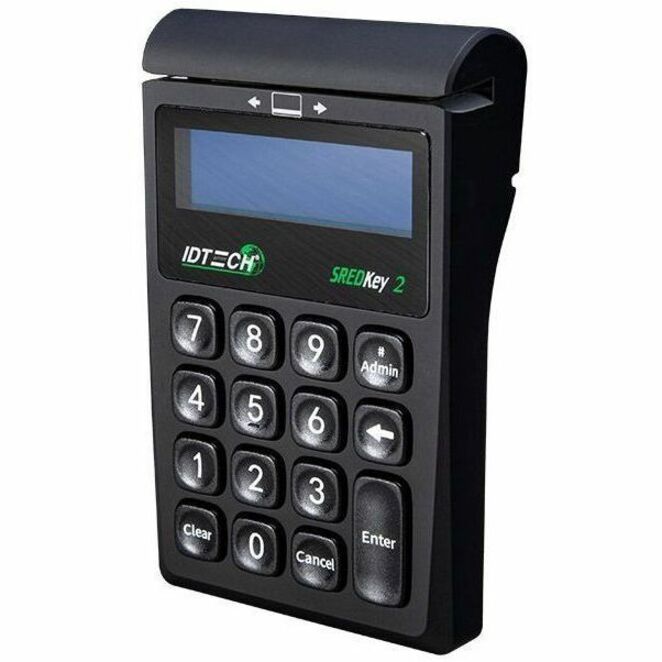

ID Tech IDSK2-535E Credit Card Reader Overview
NEXT GENERATION ENCRYPTING KEYPAD
SREDKey 2 is a PCI PTS 5.X encrypted key pad that is ideal for back office P2PE solutions. This latest version in the product family will support international languages, RKI and comes in 2 different versions: MSR and non-MSR.
Technical Information
Display & Graphics
Screen Size:
2.9"
Display Color:
Monochrome
Display Screen Type:
LCD
Interfaces/Ports
USB:
Yes
Built-in Devices
Built-in Devices:
Magnetic Stripe Reader
Reliability
MTBF:
60000 Hour
Physical Characteristics
Product Color:
Black
Miscellaneous
Additional Information:
- INTERFACE: USB-Keyboard and USB-HID
- OPERATING TEMPS: 32°F to 131°F (0°C to 55°C)
- POWER 5V ± 5%, 92 ma Max
- STORAGE TEMPS: -4°F to 149°F (-20°C to 65°C)
- HUMIDITY: Maximum 90% non-condensing
- DROP TEST: 4 ft drop to concrete on 6 surfaces and 4 corners (6 cycles)
- OPERATING LIF: 4,000,000 key operations for each key and 1,000 card cycles
- MTBF: More than 60,000 power on hours
- ESD IMMUNITY: 8kV direct contact, 12kV air discharge
- APPROVALS: FCC class B/CE RoHS/REACH UL 60950
- DIMENSION 160.4mm x 96.7mm x 37.4mm
- MEDIA FORMATS: ISO 7810, ISO-7811, AAMVA
- CARD THICKNESS: 0.76mm (tolerance ±0.08mm)
- CABLE LENGTH: 1950±50mm
- CABLE CONNECTOR: USB-A connector
Environmentally Friendly:
Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
43211720
Questions? Get help from
a POS Expert!
a POS Expert!
The ID Tech IDSK2-535E Credit Card Reader is also known as
IDT-IDSK2535E
