Full specifications (PDF)
Encryption:
AES
IDSK-534833AEB Credit Card Reader
Part Number:
IDSK-534833AEB
Model:
SREDKey

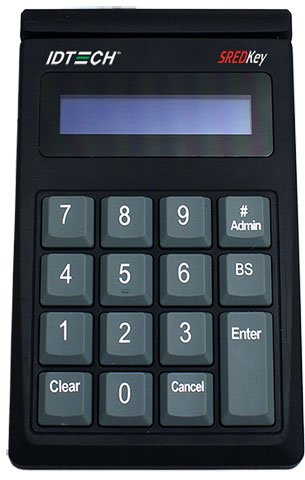

ID Tech SREDKey Credit Card Reader Model Overview
The ID TECH SREDKey™ is an advanced encrypted key pad and MagStripe card reader designed for retailers seeking to enhance payment security. Compliant with PCI-PTS certification, it offers top-notch compliance with the Payment Card Industry Data Security Standard (PCI-DSS). With robust encryption capabilities supporting both TDES and AES algorithms through DUKPT key management, it ensures that sensitive cardholder information remains protected during transaction processing. The SREDKey™ boasts an intuitive two-line LCD backlit display for easy navigation, making it a reliable choice capable of handling more than a million operations.
Key Features:
- PCI-PTS 3.x SRED certified for maximum payment security.
- Supports TDES and AES encryption algorithms.
- Durable design with a lifespan of over 1,000,000 swipes and key entries.
- Two-line, 20-character backlit LCD for improved user experience.
- Powered via USB, no external power supply needed.
- Versatile installation options with USB-Keyboard and USB-HID interfaces.
Specifications:
- Power Requirements: +5.0 VDC ±10%, 60 mA Max
- Operating Temperature: 32°F to 131°F (0°C to 55°C)
- Storage Temperature: -4°F to 149°F (-20°C to 65°C)
- Humidity: Maximum 90% non-condensing
- Operating Life: 1,000 card cycles; 4,000 key operations
- Dimensions: 6.30 in (L) x 3.80 in (W) x 1.46 in (H)
- Weight: 0.76 lbs (0.35 kg)
- Cable Length: 6-ft (1.83 m)
- Interface: USB-A connector
IDSK-534833AEB Credit Card Reader Overview
SREDKey™ is an encrypted key pad with an LCD and an encrypted MagStripe reader that offers retailers a complete and reliable security solution that meets the PCI-PTS certification. This intelligent reader delivers superior reading performance while encrypting sensitive MagStripe and keyed-in data that reduces the scope of PCI-DSS. The SREDKey ensures all data transactions are protected through secure point to point encryption reducing fraud and data compromises.
ID TECH's SREDKey ensures secure reading and exchange of data (SRED) to protect the cardholder's account information at the point of acceptance. The SREDKey meets PCI certifications with its encrypted MSR and secure data entry process for protection of non-PIN cardholder data.
Technical Information
Display & Graphics
Display Screen Type:
LCD
Interfaces/Ports
USB:
Yes
Built-in Devices
Built-in Devices:
Magnetic Stripe Reader
Keyboard/Keypad
Number of Keys:
15
Reliability
MTBF:
60000 Hour
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
Black
Height:
1.5"
Width:
3.8"
Length:
6.3"
Miscellaneous
Additional Information:
- Operating Life: 4,000,000 key operations for each key and 1,000 card cycles
- ESD Immunity: 4kV direct contact, 8 kV air discharge
- Media Formats: ISO 7811, AAMVA
- Card Thickness: .015 to .038 inches (0.39 to 1mm)
- Cable Length: 6-foot (1.83m)
- Cable Connector: USB-A connector
- Keyboard Material: ABS, Meets flammability spec. UL94HB
- Key Character Printing: Laser
Certifications & Standards:
- FCC class B
- CE
Environmentally Friendly:
Yes
Environmental Certification:
- RoHS 2
- REACH
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0072931618999, 0098062134863, 0735548667452
UPC:
072931618999, 098062134863, 735548667452
EAN:
0072931618999, 0098062134863, 0735548667452
UNSPSC:
43211720
