Full specifications (PDF)
Keyboard/Keypad Cable Length:
6 ft
IDSK-534833AEB-S1 Credit Card Reader
Part Number:
IDSK-534833AEB-S1
Model:
SREDKey

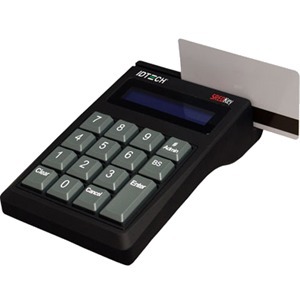

ID Tech SREDKey Credit Card Reader Model Overview
The ID TECH SREDKey™ is an advanced encrypted key pad and MagStripe card reader designed for retailers seeking to enhance payment security. Compliant with PCI-PTS certification, it offers top-notch compliance with the Payment Card Industry Data Security Standard (PCI-DSS). With robust encryption capabilities supporting both TDES and AES algorithms through DUKPT key management, it ensures that sensitive cardholder information remains protected during transaction processing. The SREDKey™ boasts an intuitive two-line LCD backlit display for easy navigation, making it a reliable choice capable of handling more than a million operations.
Key Features:
- PCI-PTS 3.x SRED certified for maximum payment security.
- Supports TDES and AES encryption algorithms.
- Durable design with a lifespan of over 1,000,000 swipes and key entries.
- Two-line, 20-character backlit LCD for improved user experience.
- Powered via USB, no external power supply needed.
- Versatile installation options with USB-Keyboard and USB-HID interfaces.
Specifications:
- Power Requirements: +5.0 VDC ±10%, 60 mA Max
- Operating Temperature: 32°F to 131°F (0°C to 55°C)
- Storage Temperature: -4°F to 149°F (-20°C to 65°C)
- Humidity: Maximum 90% non-condensing
- Operating Life: 1,000 card cycles; 4,000 key operations
- Dimensions: 6.30 in (L) x 3.80 in (W) x 1.46 in (H)
- Weight: 0.76 lbs (0.35 kg)
- Cable Length: 6-ft (1.83 m)
- Interface: USB-A connector
IDSK-534833AEB-S1 Credit Card Reader Overview
SREDKey™ is an encrypted key pad with an LCD and an encrypted MagStripe reader that offers retailers a complete and reliable security solution that meets the PCI-PTS certification. This intelligent reader delivers superior reading performance while encrypting sensitive MagStripe and keyed-in data that reduces the scope of PCI-DSS. The SREDKey ensures all data transactions are protected through secure point to point encryption reducing fraud and data compromises. Data encryption prevents card holder information from being accessed when data is stored or in transit. It also allows customers the flexibility to choose a decryption party right for them. The SREDKey supports TDES and AES data encryption using DUKPT key management.
ID TECH's SREDKey ensures secure reading and exchange of data (SRED) to protect the cardholder's account information at the point of acceptance. The SREDKey meets PCI certifications with its encrypted MSR and secure data entry process for protection of non-PIN cardholder data. Each SREDKey is assigned a unique serial number for tracking purposes. Encrypted data output with confirmation data in clear text form is programmable up to the first six digits and the last four digits of the account number. For increased data protection, SREDKey has several operational security levels allowing the user to select the security profile needed for the application.
The SREDKey is available in both USB-Keyboard and USB-HID interfaces for flexible installation options. The SREDKey also features proven reliability known within ID TECH's products and has an operating life of at least 1,000,000 swipes and key entries.
Keyboard/Keypad
Interfaces/Ports
Keyboard/Keypad Host Interface:
USB
Built-in Devices
Built-in Devices:
Magnetic Stripe Reader
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
Black
Material:
ABS
Height:
1.5"
Width:
3.8"
Length:
6.3"
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
- RoHS 2
- REACH
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
43211706
Recommended Accessories
Category
- Credit Card Reader Accessories (1)
Recommended Accessories for Model: IDSK-534833AEB-S1 Credit Card Reader
Top Credit Card Reader Accessories Purchased With ID Tech IDSK-534833AEB-S1
-
ID Tech IDT-KEYINJ-190 Credit Card ReaderKEY INJECTION; SHFT4; SREDKEY#2; 3-PARTS; DUKUPT; BDK;TG3$14.28
