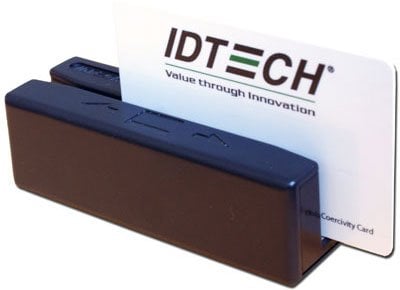

ID Tech IDRE-332133BEX Credit Card Reader

Enhance your retail security with the SecureMag™ Encrypted Intelligent MagStripe Swipe Reader. This compact 100mm device delivers exceptional reading performance while ensuring sensitive card data is fully encrypted, aligning with PCI-DSS compliance. Ideal for retailers looking to protect customer information, SecureMag™ employs advanced TDES and AES encryption methods using DUKPT key management, providing peace of mind by safeguarding data from end-to-end. Its versatile design allows easy installation, accommodating various mounting options for seamless integration into any checkout environment.

• Can function as a standard or encrypted reader
• Includes a unique serial number for tracking
• Provides clear text confirmation data with card holder's name and masked PAN
• Powered through USB, no external power supply needed
• Bi-directional card reading capabilities
• Reads data meeting ANSI/ISO/AAMVA standards and custom formats
• LED indicators and beeper for successful reads
• Supports TDES & AES encryption (TDES is standard)
• Utilizes DUKPT key management for added security

• Electrical
  • Power Requirements: +5 VDC +/-10%, 50mV ripple Max.
  • Interfaces: USB Keyboard, USB HID
  • Typical Current Draw: 5.5mA with LED, 8mA peak
• Environmental
  • Operating Temperature: 0°C to 55°C (32°F to 131°F)
  • Storage Temperature: -30°C to 65°C (-22°F to 149°F)
  • Humidity: Maximum 95% non-condensing, dry storage
• Reliability
  • Operating Life: 1,000,000 cycles minimum
  • Warranty: Two years, parts and labor
• Mechanical
  • Media Thickness: 0.015 inches (0.381mm) to 0.035 inches (1.12mm)
  • Media Formats: ISO 7811, AAMVA, and CA DMV
  • Slot Width: 0.050 inches (1.37mm)
  • Swipe Speed: 3 to 60 inches per second, bi-directional
  • Dimensions: 3.94 inches (L) x 1.38 inches (W) x 1.18 inches (H)
  • Weight: 7 oz.
  • Indicators: Tricolored LED, beeper
  • Cable Length: 6-foot side exit cable (bottom exit is an option)
