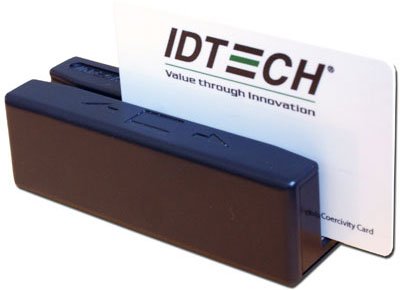

ID Tech SecureMag Credit Card Reader Model Overview
Enhance your retail security with the SecureMag™ Encrypted Intelligent MagStripe Swipe Reader. This compact 100mm device delivers exceptional reading performance while ensuring sensitive card data is fully encrypted, aligning with PCI-DSS compliance. Ideal for retailers looking to protect customer information, SecureMag™ employs advanced TDES and AES encryption methods using DUKPT key management, providing peace of mind by safeguarding data from end-to-end. Its versatile design allows easy installation, accommodating various mounting options for seamless integration into any checkout environment.
Key Features
Can function as a standard or encrypted reader
Includes a unique serial number for tracking
Provides clear text confirmation data with card holder's name and masked PAN
Powered through USB, no external power supply needed
Bi-directional card reading capabilities
Reads data meeting ANSI/ISO/AAMVA standards and custom formats
LED indicators and beeper for successful reads
Supports TDES & AES encryption (TDES is standard)
Utilizes DUKPT key management for added security
Specifications
Electrical
Power Requirements: +5 VDC +/-10%, 50mV ripple Max.
Interfaces: USB Keyboard, USB HID
Typical Current Draw: 5.5mA with LED, 8mA peak
Environmental
Operating Temperature: 0°C to 55°C (32°F to 131°F)
Storage Temperature: -30°C to 65°C (-22°F to 149°F)
Humidity: Maximum 95% non-condensing, dry storage
Reliability
Operating Life: 1,000,000 cycles minimum
Warranty: Two years, parts and labor
Mechanical
Media Thickness: 0.015 inches (0.381mm) to 0.035 inches (1.12mm)
Media Formats: ISO 7811, AAMVA, and CA DMV
Slot Width: 0.050 inches (1.37mm)
Swipe Speed: 3 to 60 inches per second, bi-directional
Dimensions: 3.94 inches (L) x 1.38 inches (W) x 1.18 inches (H)
Weight: 7 oz.
Indicators: Tricolored LED, beeper
Cable Length: 6-foot side exit cable (bottom exit is an option)

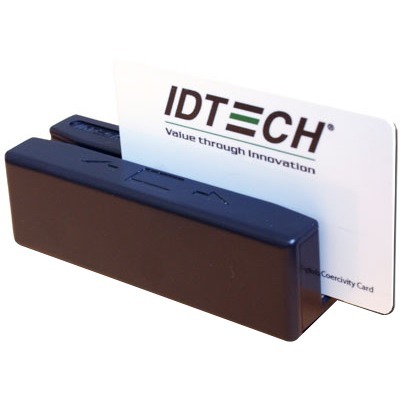

ID Tech IDRE-332133B Credit Card Reader Overview
SecureMag delivers superior reading performance while encrypting sensitive data that complies with PCI-DSS requirements. The SecureMag supports TDES and AES data encryption using DUKPT key management. Each SecureMag card reader is assigned a unique serial number for tracking purposes. Encrypted data output with confirmation data in clear text form is programmable up to the first six digits and the last four digits of the account number. For increased data protection, SecureMag has several operational security levels allowing the user to select the security profile needed for the application.
