IDPB-305100 Credit Card Reader

Part Number: IDPB-305100
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Identification Method
Key Code
Features
Vandal ResistantWater Proof
Input Voltage
5 V DC
Input Current
140 mA

Product Description:

  ID TECH Compact PCI Certified PIN Entry Device - Key Code - 5 V DC
Explore all ID Tech Parts Accessories
Add to Quote
IDPB-305100 Credit Card Reader
IDPB-305100 Credit Card Reader

ID Tech Parts Accessory Model Overview

Products and parts from IDTech.
IDPB-305100 Credit Card Reader Overview

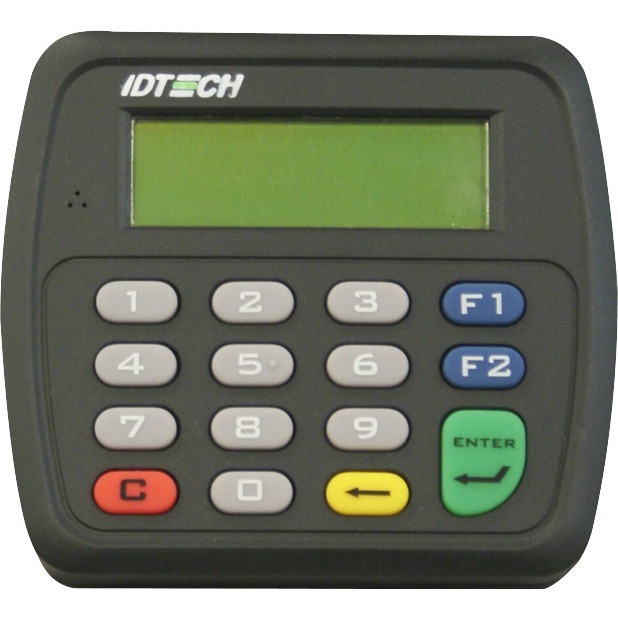

The SmartPIN C100 is a PCI 2.1 approved PIN entry device that's designed for integrating into tablet PC or other compact OEM applications. The backlit LCD display has 2 lines x 12 characters for information text and visual indication of the PIN entry process. PIN entry is encrypted and securely transmitted over the RS232 or USB communication interface. The compact housing of the SmartPIN C100 is vandal-resistant, ruggedized, and water spill-proof. The SmartPIN C100 is operated through a POS application command & response (API message) structure.

Technical Information
Identification Method:
Key Code
Features:
  • Vandal Resistant
  • Water Proof
Power Description
Input Voltage:
5 V DC
Input Current:
140 mA
Physical Characteristics
Product Color:
Black
Height:
0.6"
Width:
2.7"
Depth:
3"
Weight (Approximate):
2.51 oz
Miscellaneous
Additional Information:
  • Ultra-compact design
  • USB-HID and RS232 interface
  • PCI 2.1 approved
  • 2x12 characters LCD display with backlight
  • Secured PIN entry
  • Tamper-resistant mechanism
  • AES, DES and TDES encryption
  • DUKPT key management
  • Audio keystrokes & operation alerts
Certifications & Standards:
  • FCC
  • CE
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 46171500, 46171619
