Full specifications (PDF)
USB:
Yes
ID Tech IDMR-AB93133W Credit Card Reader
Part Number:
IDMR-AB93133W
Model:
UniPay III
ID Tech UniPay III Credit Card Reader Model Overview
ID TECH's UniPay III is the ultimate solution for secure mobile payment acceptance, combining a compact design with cutting-edge technology. It seamlessly accepts multiple payment methods, including MagStripe, EMV smart cards, and contactless payments such as Apple Pay and Android Pay. The integrated audio jack and USB connectivity ensure easy integration with mobile applications, while the energy-efficient design prolongs the life of your device. With robust encryption and compliance with EMV standards, UniPay III guarantees secure transactions every time, making it an ideal choice for businesses on the go.
Key Features:
- Audio headphone jack communication for the latest Apple iOS and Android platforms
- EMV Level 1 and Level 2 approval
- Compact and ergonomic design to integrate with a variety of mobile devices
- Encrypted MSR, chip card, and contactless reader with DUKPT key management
- Micro-USB port for pass-through charging and PC communication
- Accepts Apple Pay and Android Pay
- 1-year manufacturer warranty
Specifications:
- Electrical Interfaces:
- Audio headphone jack
- USB
- Environmental:
- Operating Temperature: 32°F to 131°F (0°C to 55°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Humidity: Maximum 95% non-condensing
- Reliability:
- Operating Life: 300,000 card swipes minimum (MagStripe Reader)
- 80,000 card cycles minimum (Smart Card Reader)
- Warranty: 1 year, parts and labor
- Mechanical:
- Dimensions (H x L x W): 2.52 inches x 1.93 inches x 0.57 inches
- Media Thickness: 0.76mm to 0.89mm minimum

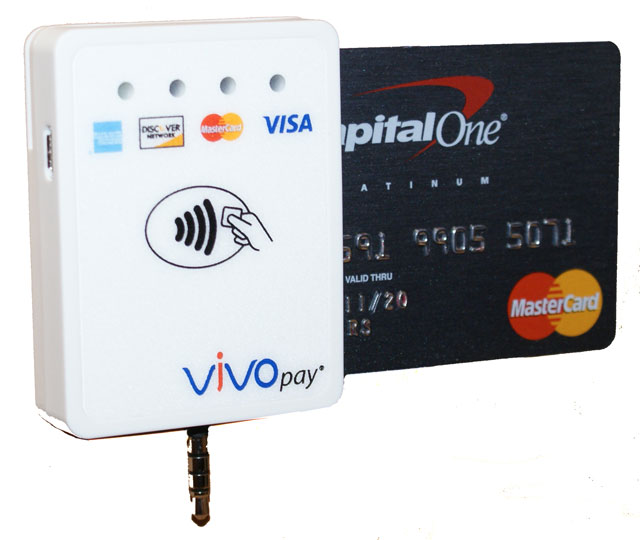

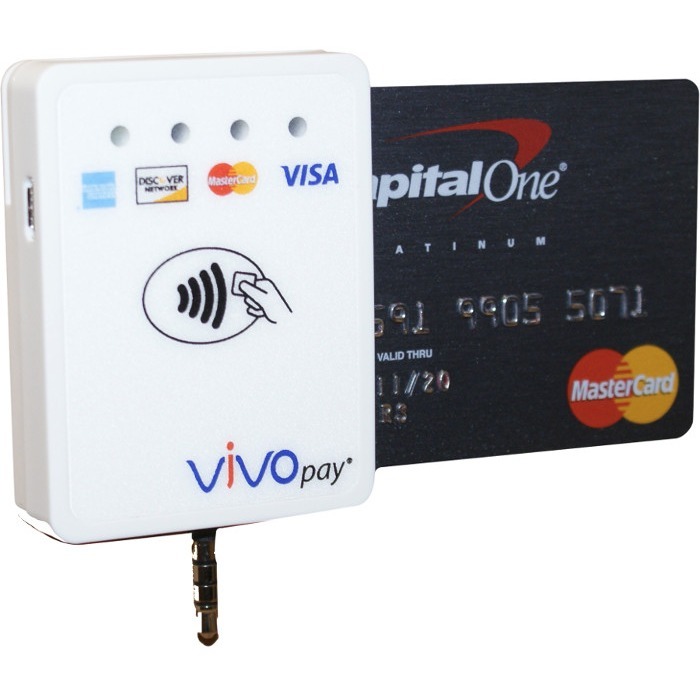

ID Tech IDMR-AB93133W Credit Card Reader Overview
Compact Magnetic Stripe, SmartCard, and Contactless Reader
ID TECH's UniPay™ III represents the latest innovation in secure mobile payment acceptance. The UniPay™ III incorporates triple-track MagStripe, smart card, and contactless technologies. With this all-inone mobile reader, it enables the acceptance of MagStripe, EMV smart card, and NFC/contactless payments including Android Pay, Apple Pay, Samsung Pay, MasterCard PayPass, Visa VCPS, American Express ExpressPay, Discover DPAS, and more.
Mobile Form Factor and Audio Jack Interface
ID TECH's UniPay™ III communicates to the host via the audio jack port and is supported on Apple, Windows, and Android platforms with a SDK, to allow for simple and easy integration into mobile payment applications. Also featured, is a USB port which can be used for charging or communication with a PC or Android USB which can be used for charging or communication with a PC or Android USB. The UniPay™ III's efficient design minimizes power consumption to the host device's batter life.
Interfaces/Ports
Physical Characteristics
Product Color:
White
Miscellaneous
Environmentally Friendly:
Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS) 2
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
43211702
Questions? Get help from
a POS Expert!
a POS Expert!
The ID Tech IDMR-AB93133W Credit Card Reader is also known as
IDT-IDMRAB93133W
or IDMRAB93133W.
