IDMB377112 Credit Card Reader

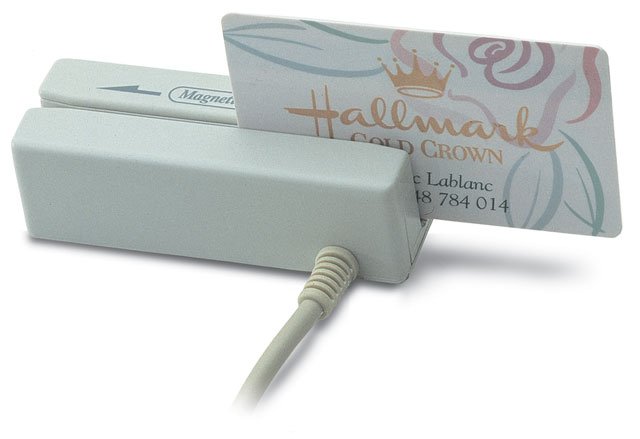

ID Tech MiniMag Credit Card Reader Model Overview
Key features:
- Multiple Interfaces: Supports KB, RS232, USB-KB, USB-CDC, USB-HID, and RS232 Port-Powered connectivity.
- Programmable Functions: Customize output format with a Windows-based MagSwipe Configuration Utility.
- Exceptional Reliability: Reads up to 1,000,000 passes with a visual and audible indicator for successful reads.
- Flexible Mounting: Can be mounted in various orientations using threaded inserts or Velcro.
- Compact Design: With a size of 3.54 x 1.34 inches, perfect for limited spaces.
Specifications:
- Electrical:
- Power: 5 VDC +/-10%
- Current: 1mA per track (max)
- External Power Supply: 5 VDC/350mA (RS-232 only)
- Environmental:
- Operating Temperature: 32°F to 131°F (0°C to 55°C)
- Storage Temperature: -22°F to 158°F (-30°C to 70°C)
- Humidity: Maximum 95% non-condensing
- Mechanical:
- Dimensions: 3.54" x 1.34" x 1.10"
- Weight: Approximately 4.6 oz.
- Cable Length: 6-foot side exit (bottom exit available)
- Indicators:
- Tri-colored LED and beeper for read indication
