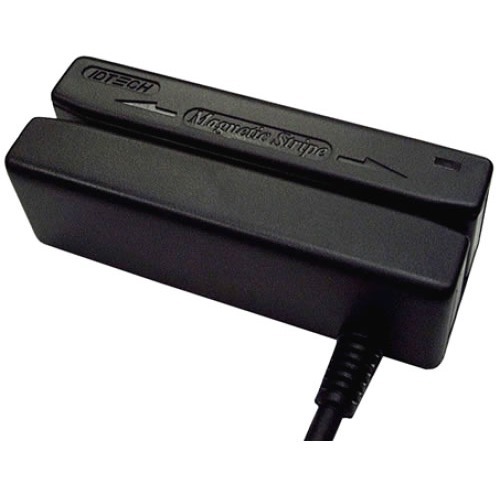

ID Tech IDMB-355133BX Credit Card Reader

ID Tech MiniMag Duo - ID TECH MiniMag Duo Compact Dual-Headed MagStripe Swipe Reader - Triple Track - 60 in/s - USB - Black

Need a different version? See all ID Tech MiniMag Duo Credit Card Readers

$79.34
Add to Quote
Add to My Shopping List Add to Compare
ID Tech IDMB-355133BX Credit Card Reader
ID Tech IDMB-355133BX Credit Card Reader ID Tech IDMB-355133BX Credit Card Reader ID Tech IDMB-355133BX Credit Card Reader
ID Tech IDMB-355133BX Credit Card Reader
ID Tech IDMB-355133BX Credit Card Reader
ID Tech IDMB-355133BX Credit Card Reader
Full specifications (PDF)
ID Tech MiniMag Duo Credit Card Reader Model Overview
The ID Tech MiniMag Duo features all the benefits of the industry-leading MiniMag but with the added convenience of a second stripe reader, ensuring a successful read no matter the card's orientation. Available in USB Keyboard and USB HID interfaces, the MiniMag Duo offers one of the smallest form factors for the industry. It reads 3 tracks of magnetic stripe card data regardless of swiping direction and over a large speed range. The MiniMag Duo is a strong fit for kiosk applications as well as POS, loyalty and hospitality applications.
ID Tech IDMB-355133BX Credit Card Reader Overview

Two magnetic heads provides the most convenience to the user and ensures the data is captured on every swipe. The MiniMag Duo IDMB Magnetic Stripe Reader delivers exceptional performance in a compact 90mm long solution. It supports USB-HID interface.

Full specifications (PDF)
Technical Information
Number of Read Heads:
2
Magnetic Stripe Track Configuration:
Triple Track
Magnetic Stripe Track Number:
  • Track 1
  • Track 2
  • Track 3
Minimum Swipe Speed:
3 in/s
Maximum Swipe Speed:
60 in/s
Magnetic Head Life:
1000000 Swipe
Interfaces/Ports
USB:
Yes
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
Black
Height:
1.1"
Width:
1.3"
Length:
3.5"
Weight (Approximate):
4.60 oz
Miscellaneous
Additional Information:
  • Tri-color LED and beeper
  • 6-foot side exit cable
  • Signifies successful reads with a beeper and LED indicator
  • Compact size allows use in many applications
  • User friendly configuration software utility
Certifications & Standards:
  • CE
  • FCC
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0053926306367, 0783555144350
UPC: 053926306367, 783555144350
EAN: 0053926306367, 0783555144350
UNSPSC: 43211702
