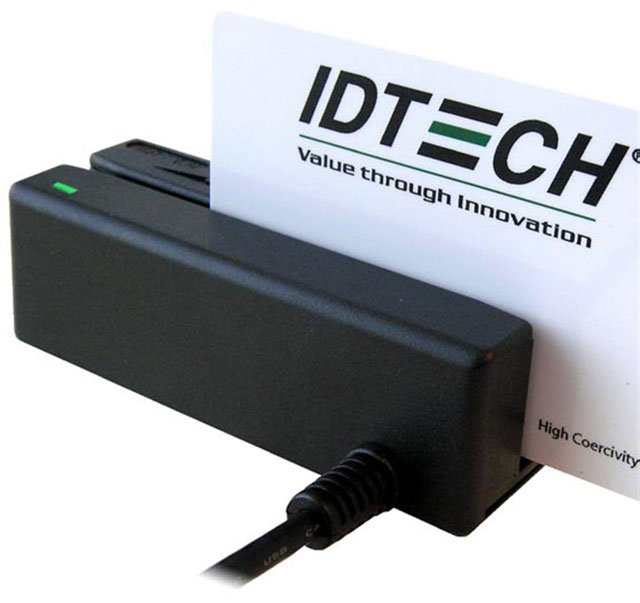

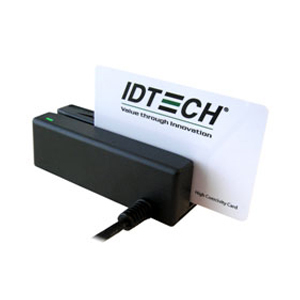

ID Tech IDMB-336112B Credit Card Reader

Part Number: IDMB-336112B

Model: MiniMag

$69.31

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Magnetic Stripe Track Configuration

Dual Track

Magnetic Stripe Track Number

Track 1Track 2

Minimum Swipe Speed

3 in/s

Maximum Swipe Speed

60 in/s

Product Description:

ID TECH MiniMag II IDMB Magnetic Stripe Reader - Dual Track - 60 in/s - USB - Black

Explore all ID Tech MiniMag Credit Card Readers

Add to Quote

Overview

Full specifications (PDF)

ID Tech MiniMag Credit Card Reader Model Overview

The MiniMag™ Compact Intelligent Magstripe Swipe Reader is designed for optimal performance in a space-saving format. Capable of reading up to 3 tracks of magnetic stripe card data in either direction, it enhances usability across various applications, including POS systems and loyalty programs. With innovative mounting options, the MiniMag easily adapts to your setup, ensuring a seamless integration. Its user-friendly software allows for customization, making it an ideal choice for businesses seeking efficiency combined with reliability.

Key features:

Multiple Interfaces: Supports KB, RS232, USB-KB, USB-CDC, USB-HID, and RS232 Port-Powered connectivity.
Programmable Functions: Customize output format with a Windows-based MagSwipe Configuration Utility.
Exceptional Reliability: Reads up to 1,000,000 passes with a visual and audible indicator for successful reads.
Flexible Mounting: Can be mounted in various orientations using threaded inserts or Velcro.
Compact Design: With a size of 3.54 x 1.34 inches, perfect for limited spaces.

Specifications:

Electrical:

Power: 5 VDC +/-10%
Current: 1mA per track (max)
External Power Supply: 5 VDC/350mA (RS-232 only)

Environmental:

Operating Temperature: 32°F to 131°F (0°C to 55°C)
Storage Temperature: -22°F to 158°F (-30°C to 70°C)
Humidity: Maximum 95% non-condensing

Mechanical:

Dimensions: 3.54" x 1.34" x 1.10"
Weight: Approximately 4.6 oz.
Cable Length: 6-foot side exit (bottom exit available)

Indicators:

Tri-colored LED and beeper for read indication

ID Tech IDMB-336112B Credit Card Reader Overview

The MiniMag II is an intelligent, programmable Magnetic stripe reader providing a wide range of functionality and value in a convenient package size. The entire unit is just 90 mm long, about the length of a credit card. It reads up to two tracks of information with a single swipe in either direction. It has a beeper and three color LED indicator to signal a successful read.

Detailed Specs

Full specifications (PDF)

Technical Information

Magnetic Stripe Track Configuration:

Dual Track

Magnetic Stripe Track Number:

Track 1
Track 2

Minimum Swipe Speed:

3 in/s

Maximum Swipe Speed:

60 in/s

Number of Swipes (Head Life):

1000000

Bi-directional Reading:

Yes

Interfaces/Ports

USB:

Yes

Power Description

Input Voltage:

5 V DC

Physical Characteristics

Product Color:

Black

Height:

1.1"

Width:

1.3"

Length:

3.5"

Weight (Approximate):

4.60 oz

Miscellaneous

Additional Information:

Small footprint to fit in tight places
Bi-directional swipe reading
Superior reading of high jitter, scratched, and worn magstripe cards
Threaded inserts for mounting
Mag swipe PC software makes configuration changes easy
JPOS & OPOS support for all interfaces is provided

Item Numbers

UNSPSC: 43211702

Q&A

Reviews

Questions? Get help from
a POS Expert!

The ID Tech IDMB-336112B Credit Card Reader is also known as IDT-IDMB336112B or IDMB336112B.
